Sensitive Drill Feed and 1/8" (3 mm) Keyless Drill Chuck

Fingertip control for drilling small holes
Helps prevent drill breakage
0JT taper, 1/2" diameter precision ground straight shank
Spring loaded 3/4” travel fits most drills, mills, lathes or jig borers
Capacity: 0” - 1/8" (0 - 3mm ) Keyless drill chuck

Part Number: 3790
Weight: 0.40 lb

Price: $141.95

This product is currently backordered.

Estimated availability:
Unknown
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/3790

Description

Sensitive drill feed designed for drilling small holes combined with a 0"-1/8" (3 mm) capacity keyless drill chuck.

To use the sensitive drill feed, grasp the knurled ring and pull it down to feed the drill into the workpiece. The internal spring retracts the drill when the ring is released.

No chuck key is required with this self-tightening design. The chuck is made from hardened tool steel to ensure accuracy and extended life.

The rated capacity of the drill chuck is 0 to 3 mm. Number 0 Jacobs taper mount. 0.002" (0.05 mm) maximum runout.

Chris' Tips

Chris' Tips
This thing is great for drilling small holes. It virtually eliminates broken drill bits because it gives you much better feedback than a drill press or milling machine.

Photos

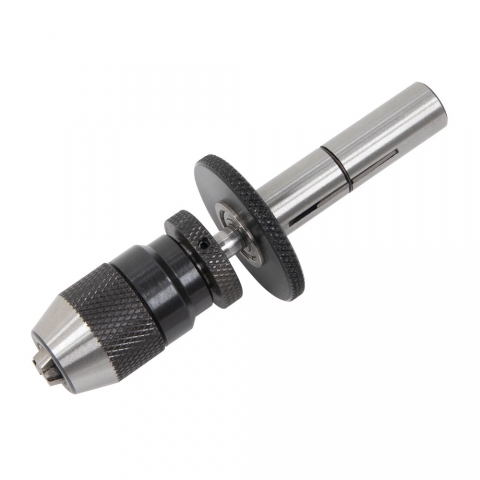

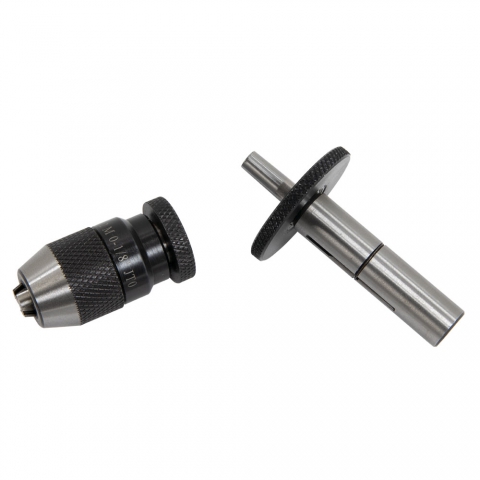

Sensitive Drill Feed and 1~8in (3 mm) Keyless Drill Chuck
