Arbor, Grinding Wheel
- Grinding wheel arbor for tool post grinder
- Two discs and two pads
- Designed to work with P/N 2001 grinder
- Part #s 4 and 6 in grinder manual
Part Number: 2195
Weight: 0.20 lb
Weight: 0.20 lb
Price: $9.91
Share this page:
http://lmscnc.com/2195
http://lmscnc.com/2195
Related Products

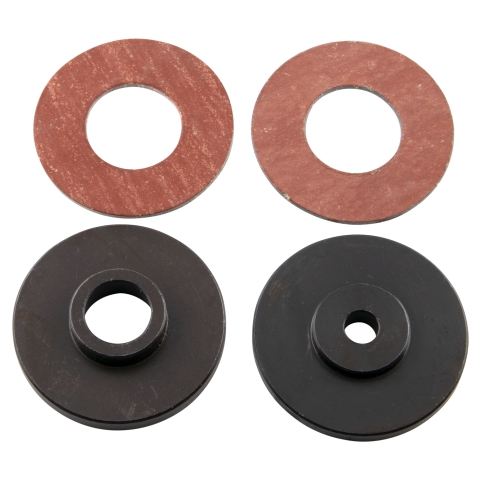

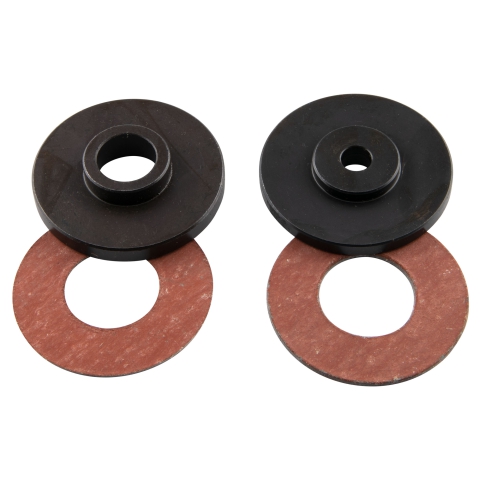

This is the two-piece arbor that retains the grinding wheel on the PN 2001 tool post grinder. It includes the two pads.
The two parts are identified as #4 and #6 in the grinder manual drawing.
Both parts are 45 mm wide with a 20 mm registration to fit into the inside of the grinding wheel. The pads have a 20 mm hole to fit over each part, between the part and the grinding wheel.
See the Compatibility tab for products that work with this product.
| Part #4 Width | 1.8" (45 mm) |
| Part #4 Registration | 0.8" x 0.1" (20 mm x 3 mm) |

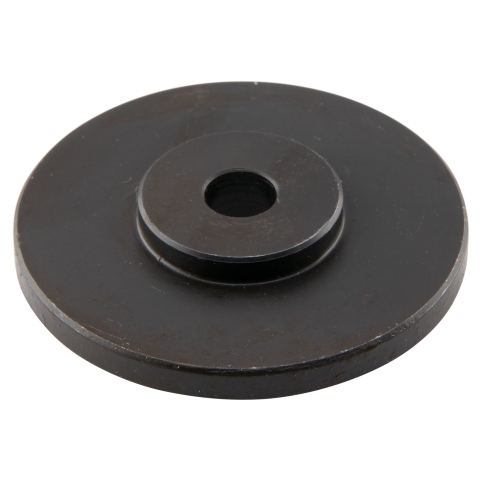

| Part #4 Inside Hole For Bolt | M6 |
| Part #6 Width | 1.8" (45 mm) |
| Part #6 Registration | 0.8" x 0.2" (20 mm x 5 mm) |

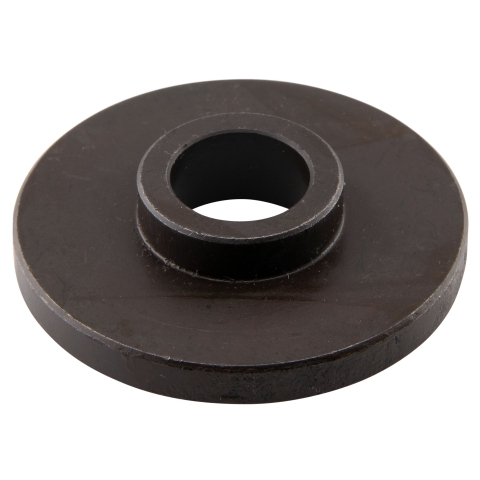

| Part #6 Inside Hole | 0.8" (20 mm) |
| Pads Width | 1.8" (45 mm) |
| Pads Inside Hole | 0.8" (20 mm) |
