Lathe Chuck, 3-Jaw 5", with Adapter to 3" Spindle

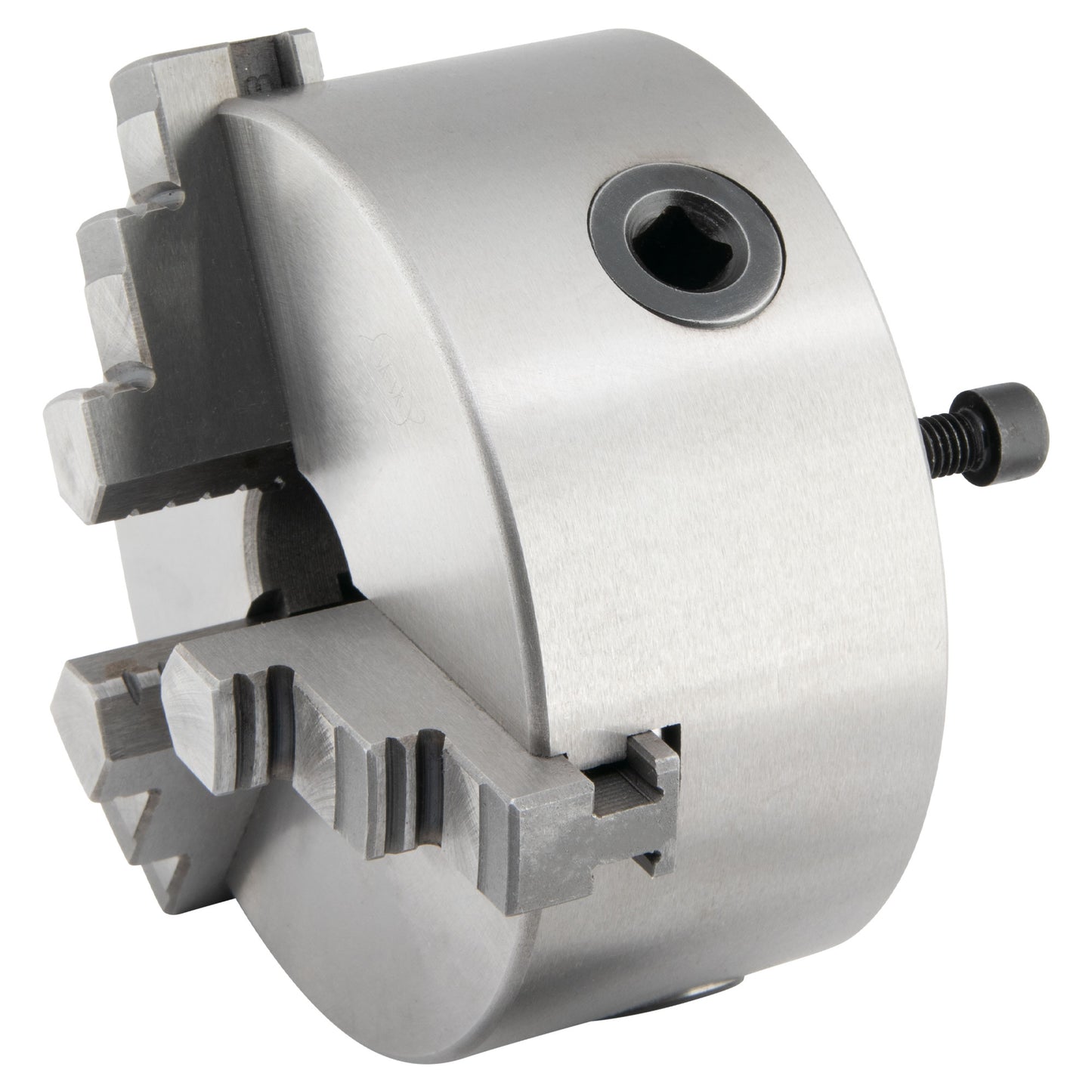

3-jaw self-centering lathe chuck
5" (125 mm) diameter
Includes chuck key, inside and outside jaws
Includes an adapter to mount on a 3" (80 mm) flange
High-quality steel, hardened and ground

Part Number: 2345
Weight: 14.1 lb

Price: $149.95

This product is currently backordered.

Estimated availability:
13-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2345

Description

5 inch, 3-Jaw self-centering lathe chuck with adapter mounted for the mini lathe. Includes chuck key, inside and outside jaws.

This 5 inch lathe chuck can hold work up to 4.33" (110 mm) in diameter and comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck.

The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

Chris' Tips

Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

This chuck is a bolt-on accessory with the adapter that is included. All larger chucks require an adapter to fit on the mini lathe, no matter how many holes there are in the spindle.

Don't forget to get a set of studs and nuts to mount it.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications

Specifications
Rated Capacity, Inside Jaws	0.10" - 1.57" (2.5 mm - 40.0 mm)
Rated Capacity, Jamming Range	1.50" - 4.92" (38.0 mm - 125.0 mm)
Rated Capacity, Outside Jaws	1.50" - 4.33" (38.0 mm - 110.0 mm)
Practical Maximum Capacity, Inside Jaws	2.00" (50.8 mm)
Practical Maximum Capacity, Outside Jaws	4.00" (101.6 mm)
Runout (Max)	≤ 0.003" (0.08 mm)
Diameter, Overall	4.92" (125.0 mm)
Registration Recess Diameter	3.74" (95.0 mm)
Registration Recess Depth	0.14" (3.5 mm)
Bolt Circle Diameter	4.25" (108.0 mm)
Center Hole Diameter	1.18" (30.0 mm)
Height	2.28" (58.0 mm)
Jaw Height Above Face	1.10" (28.0 mm)
Height with Jaws	3.39" (86.0 mm)
Number and Size of Bolts	3 M8
Chuck Key	0.374" (9.50 mm)
Chuck Designation	K11-125

Contents

This product contains the following items:
	Description	Qty
	Adapter, 3" Spindle to 5" Lathe Chuck, P/N 2347	1
	Lathe Chuck, 3-Jaw 5", P/N 2337	1

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1222 Studs & Nuts, M6

This product works with lathes with a 80 mm flange chuck mount including:

Grizzly M1015 Shop Fox 6x10 Micro Lathe
Micro-Mark 85181 MicroLux 6x10 Micro Lathe
SIEG C1 6x10 Micro Lathe
Woodstock International M1015 Shop Fox 6x10 Micro Lathe
