Ball and Radius Turning Tool, LargeMade in United States

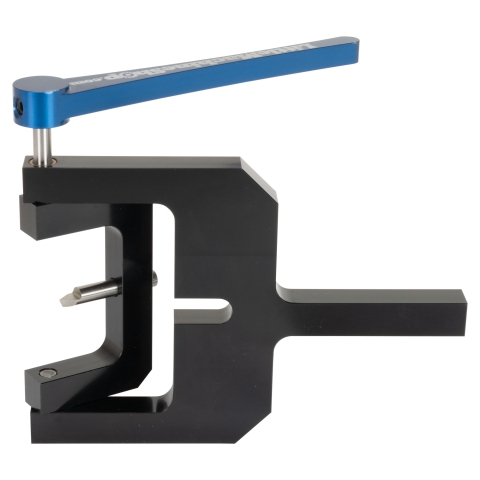

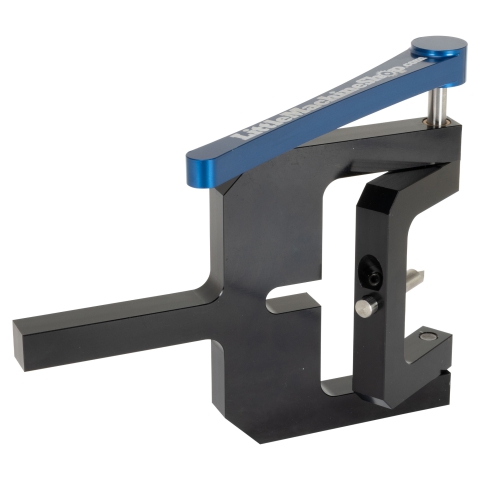

Ball and Radius Turning Tool, Large
  • Turn round shapes or curves on metal mini lathe
  • For brass, aluminum, steel, plastic
  • Cut convex curves up to 1 3/4" in diameter
  • 1/2" Shank
Part Number: 2568
Weight: 0.70 lb

Price: $139.95

In stock
Quantity:


PayPal Credit
The OMW Large Radius Ball Tool like its smaller counterpart is designed to cut round shapes or curves in brass, aluminum, steel, wood or plastic on your own lathe.

Balls in the ends of rods, shafts, or handles are easily turned with the tool. You can also make ball joints, governor weights, railing knobs, round contact points for tools, nose cones, and many other useful and decorative objects. The OMW lathe radius turning tool is sized for lathes of 5" or greater swing, and the 1/2" shank size will fit most standard tool holders. The tool will cut convex curves up to 1 3/4" in diameter.

This lathe ball turning attachment is manufactured from the highest quality materials. Frames are machined from high strength aluminum alloy. The handle is tool steel, the pivot pins are hardened and ground and rotate in custom bronze bearings. The tool is completely machined from solid metal stock, there are no stamped, cast or pressed parts. A pre-ground High Speed steel tool bit is included. Each lathe radius turning tool is manufactured in the USA by OMW Corporation and is carefully inspected and checked before shipment.

This lathe ball turning attachment is designed so that the center height is 3/8" from the bottom of the shank. The tool comes with a pre-ground HSS tool bit which may be easily resharpened or modified.

Chris Chris' Tips
Here's a comparison of the ball and radius turning tools.

Here are complete instructions for the Large Ball and Radius Turning Tool.

Here are samples of work done with the Large Ball and Radius Turning Tool. The ball at lower right was turned from 1.5" diameter aluminum


Here is an outline drawing of the Large Ball and Radius Turning Tool.


Here is the large ball and radius tool in use


Specifications
Maximum Convex Diameter 1.75" (44.4 mm)
Maximum Concave Diameter None
Minimum Convex Diameter 0.0" (0 mm)
Minimum Concave Diameter None
Tool Dimensions (L x W x H) Without Handle 6.0" x 0.5" x 5.2" (152 mm x 13 mm x 133 mm)
Mount Dimensions (L x W x H) 2.5" x 0.5" x 0.5" (64 mm x 13 mm x 13 mm)
Handle Length 5.2" (133 mm)
Handle Height 3" (76 mm)
Shank Size 0.50" (12.7 mm)
