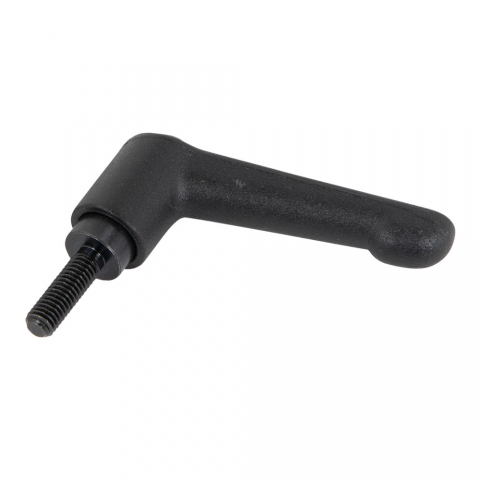

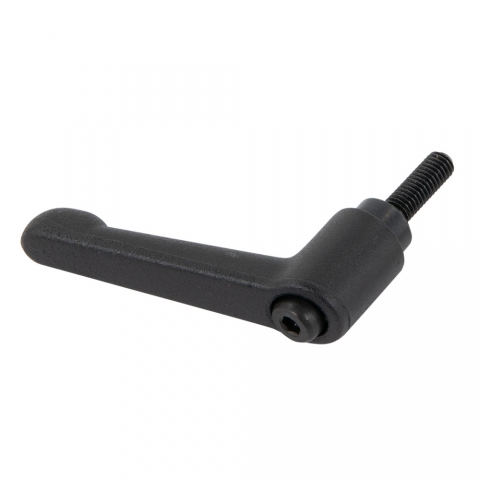

Locking Lever, M5 Heavy Duty
- Thread is M5 x 0.8
- Stud is 16 mm long
- Handle is 45 mm long
Part Number: 2616
Weight: 0.09 lb
Weight: 0.09 lb
Price: $13.95
Share this page:
http://lmscnc.com/2616
http://lmscnc.com/2616
This handle locks the Z-axis on the micro mill.
This handle, which is made in Germany, is vastly superior to the standard handle that tends to strip out.
The M6 stud is 20 mm long and the handle is 45 mm long from center of screw to handle tip.
See the Compatibility tab for machines and other products that work with this product.
Compatibility
This product works with these LittleMachineShop.com products:
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Clarke CMD10 Metalworker Micro Mill
- Harbor Freight 47158 Central Machinery Micro Mill
- SIEG X1 Micro Mill
- SIEG SX1 Micro Mill
- LittleMachineShop.com 4660 HiTorque Micro Mill
- LittleMachineShop.com 4700 HiTorque Micro Mill
- SIEG SX1P Micro Mill
In your instruction manual, this part appears on the parts list as:
| Item No | Models |
|---|---|
| 51 | Harbor Freight 47158 Central Machinery Micro Mill Clarke CMD10 Metalworker Micro Mill Various X1-US SIEG Micro Mill |
