Clamping Kit, 6 mm & 1/4" T-Slot, 42-Piece
- Six 6 mm T-slot Nuts & Six 1/4" T-Slot Nuts
- Ten M5 Studs, Six Flange Nuts, Six Step Clamps
- Four Step Block Pairs
- 6 mm t-nuts suitable for Taig mills
- 1/4" t-nuts suitable tor Sherline mills
Weight: 2.25 lb
Price: $67.95
http://lmscnc.com/2718
This clamping kit fits the 6 mm T-slots on Taig mills, and the 1/4" T-slots on Sherline mills.
The clamping kit includes 10 M5 studs, 8 step blocks in pairs, 6 T-slot nuts (in each of the two sizes), 6 flange nuts, and 6 step clamps.
The stated dimension of the clamping kit is the width at the top of the T-slot.
See the Compatibility tab for machines and other products that work with this product.
Chris' Tips
|
|
Slot |
B |
Thread A |
C |
D |
E |
Length |
|
|
1/4" |
0.24" |
M5 |
0.23" |
0.10" |
0.38" |
0.38" |
|
|
3/8" |
0.37" |
5/16" - 18 |
0.50" |
0.19" |
0.63" |
0.88" |
|
|
7/16" |
0.43" |
3/8" - 16 |
0.50" |
0.27" |
0.69" |
0.88" |
|
|
1/2" |
0.49" |
3/8" - 16 |
0.50" |
0.28" |
0.88" |
0.88" |
|
|
5/8" |
0.61" |
1/2" - 13 |
0.63" |
0.34" |
1.00" |
1.13" |
|
|
6 mm |
5.7 mm |
M5 |
8.0 mm |
4 mm |
10 mm |
10 mm |
|
|
8 mm |
7.7 mm |
M6 |
10 mm |
5 mm |
13 mm |
13 mm |
|
|
10 mm |
9.7 mm |
M8 |
12 mm |
6 mm |
15 mm |
15 mm |
|
|
12 mm |
11.7 mm |
M8 |
12 mm |
7 mm |
18 mm |
18 mm |

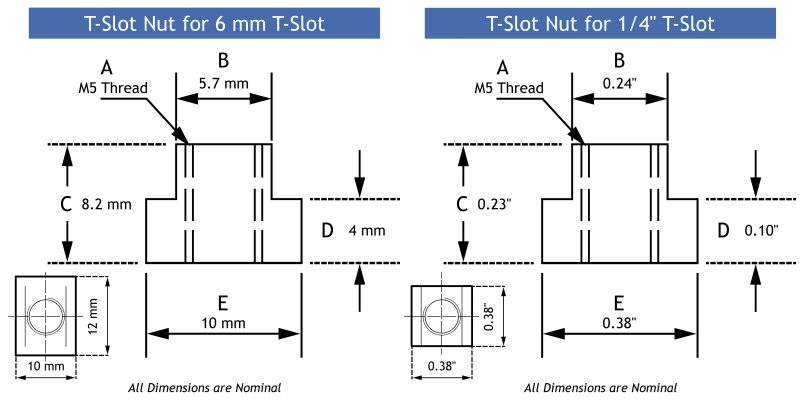

Nominal Sizes for 6 mm and 1/4" T-Slot Nuts
Suitable for 6 mm T-slots on Taig mills, and the 1/4" T-slots on Sherline mills.
 |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Sherline 5000 Mill
- Sherline 5400 Mill
- Sherline 2000 Mill
- Sherline 5800 Mill
- Taig 2018 Micro Mill
- Taig 2019 Micro Mill
- Taig 5019 Micro Mill
