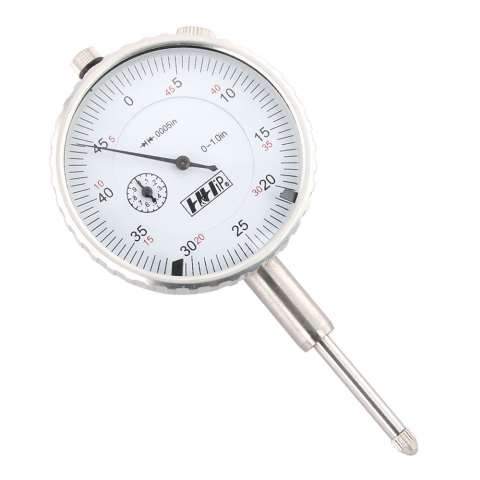

Dial Indicator, 1" x 0.0005"

0-1" dial indicator with 0.0005" resolution
AGD Group 2
2.25" Diameter face, 0.375" shank, #4-48 tip thread

Part Number: 2873
Weight: 0.43 lb

Price: $18.95

Share this page:
http://lmscnc.com/2873

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.050", indicated by the revolution counter. The resolution is 0.0005". There is a mounting lug on the back of the case.

Chris' Tips

Chris' Tips
At rest, an indicator’s needle points at a random position, usually in the 10 o’clock range. This is completely normal, as the needle’s position at rest is irrelevant to the use of an indicator.

An indicator is only useful when the tip is bearing against a surface to be measured. The action of pressing the tip against the surface moves the needle, also to some random position. But this position is relevant; turn the bezel so that the needle is pointing at zero. Now you can make measurements, both positive and negative, relative to the starting position.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications

Specifications
Range	0" - 1" (0 mm - 25 mm)
Resolution	0.0005" (0.013 mm)
A.G.D. Group	2
Face Diameter	2.25" (57.1 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Dial Reading	0-50-0
Revolution	0.050" (1.27 mm)
Type	Lug backing
Dial Face	Continuous Dual Reading

Photos

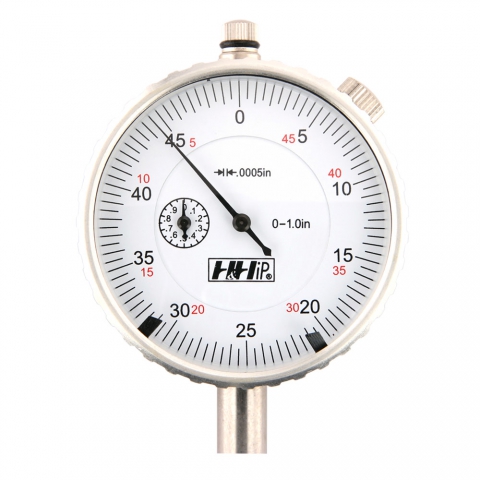

Indicator Face
