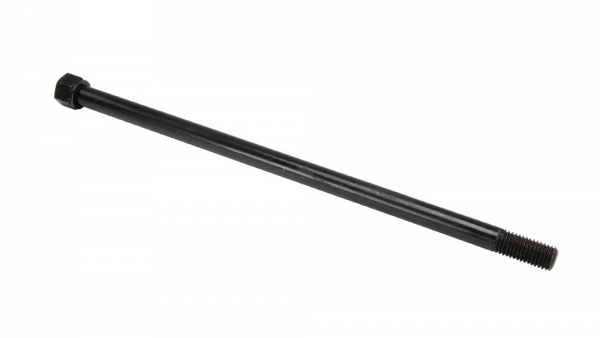

Drawbar, 3MT x M12, X3 Mill
- For SIEG X3 class of small mills
- M12 drawbar thread
- For 3MT spindle
- 270mm 10.62" long
This milling machine drawbar is 270 mm (10.62") long when measured like a bolt. It has a M12 thread and is designed for a 3 Morse Taper spindle.
This drawbar is used on SIEG X3 class of small mills including the BusyBee CX611, and Grizzly G0619.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
