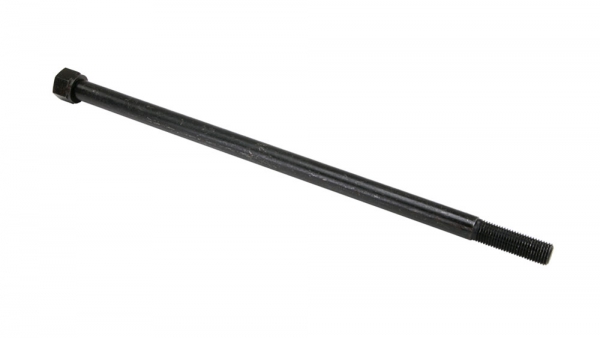

Drawbar, R8, X3 Mill CLOSEOUT 3018 (Discontinued)
- For SIEG X3 class of small mills
- For R8 spindle
- 270 mm 10.62" long
- 7/16"-20 thread
Part Number: 3018 (Discontinued)
Weight: 0.57 lb
Weight: 0.57 lb
Price: $4.95
Share this page:
http://lmscnc.com/3018
http://lmscnc.com/3018
This milling machine drawbar is 270 mm (10.62") long when measured like a bolt. It has a 7/16"-20 thread thread and is designed for an R8 spindle.
This drawbar is used on SIEG X3 class of small mills including the BusyBee CX611, and Grizzly G0619.
See Used On tab for reference to machines using this part and the corresponding drawing number.
In your instruction manual, this part appears on the parts list as:
HiTorque 6570 Deluxe Bench Mill
