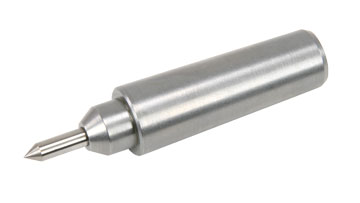

Tap Guide, 2MT Short, Fisher

Made in USA
Fits directly in the mini lathe tailstock
Much shorter than a drill chuck and regular tap guide

Part Number: 3104
Weight: 0.18 lb

Price: $24.95

Share this page:
http://lmscnc.com/3104

This tap guide helps you start threaded holes straight.

The reversible point is spring loaded to maintain pressure on the tap. One end of the point has a center hole for small taps, while the other end is pointed for larger taps.

The 2 Morse taper body is ground to fit the tailstock of the mini lathe.

Remove the setscrew in the back end to reverse the point.

This is a quality American-made product from Fisher Machine Shop.

Chris' Tips

Chris' Tips
Fisher Machine Shop produces American-quality tools at moderate prices. They are a great value.

This product is specifically designed for use on the mini lathe tailstock with a short 2MT quill.

Don't buy this product for other lathes as it won't eject from the tailstock when you retract the quill.

If you want this American made tap guide to use in a 2MT tailstock designed for a longer arbor, you can replace the set screw in the end, with a socket head cap screw that is 3/8"-24 thread. A one inch screw is a good size. One source for these screws is McMaster-Carr 18-8 Stainless Steel Socket Head Screws.

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Compatibility

Compatibility

This product works with lathes with a short 2 Morse taper tailstock taper including:

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3005 7x12 Mini Lathe (Imperial)
Warco 3004 7x12 Mini Lathe (Metric)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
