HiTorque 7450 Deluxe Mini Lathe - 7x16, LED Display

All the Features of the HiTorque 5100 (brushless motor, gearless spindle drive, extended bed, etc.)
LED display with illuminated controls and integrated spindle speed readout
2-Axis Bluetooth DRO (w/tablet) on ways and cross feed, DRO readouts on tailstock and compound
Aluminum hand wheels and chrome levers
0XA wedge-type quick change tool post and five tool holders

Part Number: 7450
Weight: 145 lb

$2,099.00 On Sale

Regularly $2,299.00

Share this page:
http://lmscnc.com/7450

The LittleMachineShop.com HiTorque 7450 Mini Lathe is the best in its class. It has the most power, the most torque, the most features and upgrades, and the longest bed in its class. It is also proof that all lathes are not the same.

Most noticeable is the LED mirror display which clearly and elegantly organizes the key controls for the lathe. All controls are Illuminated, and it includes a start/stop button, a spindle direction button and emergency power (E-stop) switch. A variable speed control knob allows accurate control of spindle speeds, while an integrated spindle speed display clearly displays the speed.

The 7450 lathe also comes equipped with a 2-axis tablet display DRO connected via Bluetooth to magnetic scales on the longitudinal and cross feeds. It also has 2 digital readouts on the compound rest and tailstock. The DRO system measures in increments .0002" and comes factory installed on the lathe.

A 500-Watt brushless spindle drive motor and belt drive provides tremendous power and low-end torque. There are NO gears to shift, so no gears to break. The drive allows for spindle speeds from 100 to 2500 RPM continuously in both directions. NSK brand Japanese-quality spindle bearings ensure smooth and quiet operation.

Standard on the lathe is an all steel, wedge-type quick change tool post which accepts turning tools up to 1/2" shank. Five toolholders are also included for the most common tools and tasks. The lathe also comes with a 4" Sanou lathe chuck, a Morse taper #2 dead center for the tailstock, and an 11-gear change gear set that includes a 21-tooth gear for accurate metric threading. For more details, see the Contents tab.

Real top and bottom half-nuts with a 16 TPI lead screw and a factory-installed threading dial provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch with the extra 21 tooth change gear that is included.

The 7x16 lathe includes attractive aluminum hand wheels and chrome levers. A backsplash guard and deluxe chip tray with rubber feet give a broader and more secure stance.

The LittleMachineShop.com model 7450 HiTorque Mini Lathe is a version of the SIEG SC2.

*NOTE* We ship machines only to the US and Canada.

Chris' Tips

Chris' Tips

Take a look at the HiTorque 7450 mini lathe in action.

View a comparison of the specifications for our lathes.

See what the difference is between the SIEG drive system and the HiTorque drive system.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually make more thread pitches than that. And, there are more change gear combinations than those shown in the users guide. To see what you can really do, see the Change Gear Calculator.

Why HiTorque mini lathes have plastic change gears.

First, a couple of notes:

The use of plastic gears in HiTorque machines is limited to mini lathe Change Gears. HiTorque mills and lathes have no Drive Gears as they utilize a brushless DC drive with a belt directly from the motor to the spindle. In short, there are no gears at all in the spindle drive.
When you read about plastic gears breaking, most cases involve the two-speed gears inside the headstock of mini mills. As noted, this does not apply to any HiTorque mini mill as we have no gears in the spindle drive.
The use of plastic change gears does not apply to the HiTorque bench lathes. Our larger HiTorque bench lathes, which are designed for larger work pieces, greater power, and more torque, have all metal gears as appropriate for their size.

With those qualifiers out of the way, here are some of the important points in favor of using plastic Change Gears in HiTorque mini lathes:

Plastic gears are quieter than metal gears. Metal change gears raise the sound level to an objectional level.
Plastic gears are more economical and help reduce machine cost and keep gear replacement cost to a minimum.
Our plastic gears are made from a thermoplastic Polyoxymethylene (POM) which are very durable.
In the rare cases where a plastic gear does fail, it is often due to using the lathe for jobs beyond its design parameters. In such a case, the broken gear worked as an inexpensive mechanical fuse, saving the machine from damage.

If you prefer metal change gears, we sell a Metal Change Gear Set. Note: Please check the compatiblity tab on the product page to ensure that you are getting the correct gear set for your machine.

For more information on plastic gears visit our detailed discussion Plastic Gears, Good or Bad?.

Here are the user's guides for our machines.

Features

LED display with illuminated controls and integrated spindle speed readout
Factory installed 2-axis DRO with 7" Android tablet readout on cariage and cross feed
Digital readouts on the compound rest and tailstock quill
500 Watt output spindle motor
NSK brand Japanese bearings
No gears in spindle drive
Aluminum hand wheels
Chrome levers
Cam lock tailstock with DRO
E-stop safety power switch
Extended threading capability - inch and metric threads
Integrated Threading dial
Reversible lead screw for right and left hand threads
0XA wedge-type Quick change tool post set with five tool holders
4" 3-jaw SANOU chuck
Rear apron shield to keep swarf out of the mechanism
Heavy duty chip tray with wide stance rubber feet for added stability
Mini Lathe Users Guide

Specifications

Specifications
Swing Over Bed	7.1" (180 mm)
Swing Over Saddle	4.3" (110 mm)
Distance Between Centers	16" (410 mm)
Cross Slide Travel	2.6" (65 mm)
Spindle Through Hole	0.8" (20 mm)
Spindle Taper	#3 Morse taper
Tailstock Taper	#2 Morse taper
Range of Threads	4-80 TPI; 0.3-8.0 mm
Spindle Motor Output	0.67 hp (500 Watts)
Spindle Speed	100 - 2500 RPM
Power Requirements	120 V 60 Hz 8 Amps
Machine Weight	108 lbs (49 kg)
Crated Weight	143 lbs (65 kg)
Overall Dimensions (W x D x H)	31" x 10" x 12" (790 mm x 260 mm x 300 mm)
Crate Dimensions (W x D x H)	36" x 17" x 18" (920 mm x 440 mm x 465 mm)

Photos

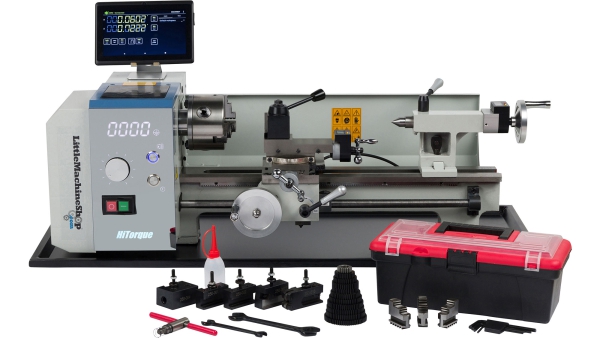

	Shown with Accessories

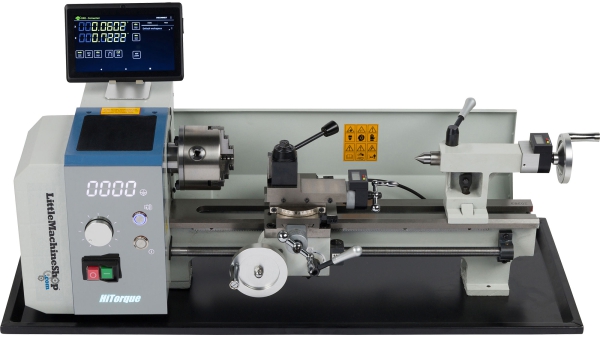

	Alternate View

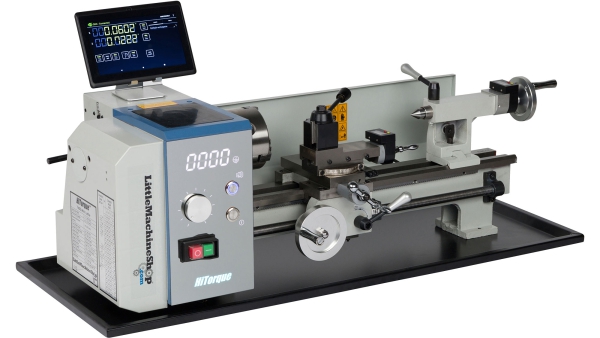

	Alternate View

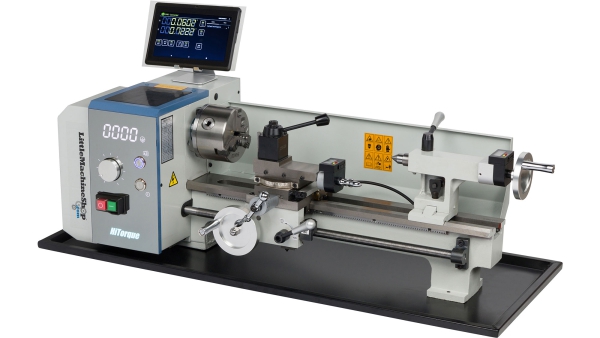

	Alternate View

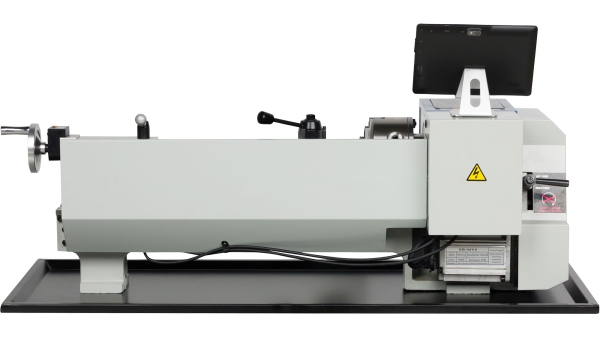

	Rear View

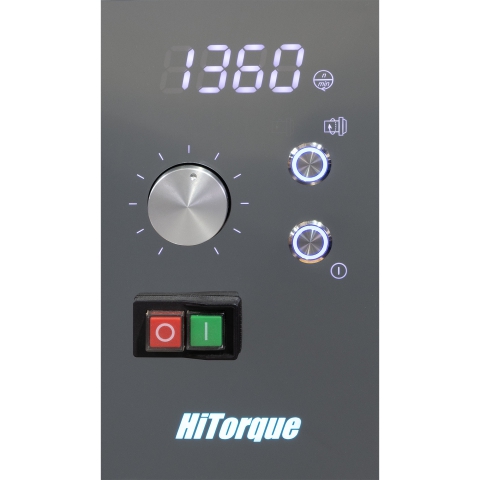

	Control Panel

Contents

The HiTorque 7x16 Deluxe Mini Lathe, Mirror Display comes with the following:

Mini Lathe Users Guide written by Chris Wood
4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
Quick change tool post with five tool holders
A Morse taper #2 dead center for the tailstock
An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
Two open end wrenches
Four hex (Allen) wrenches
A plastic oil can
Convenient tool box to hold accessories
Chip Tray, 7x16 Mini Lathe (part #5506)
