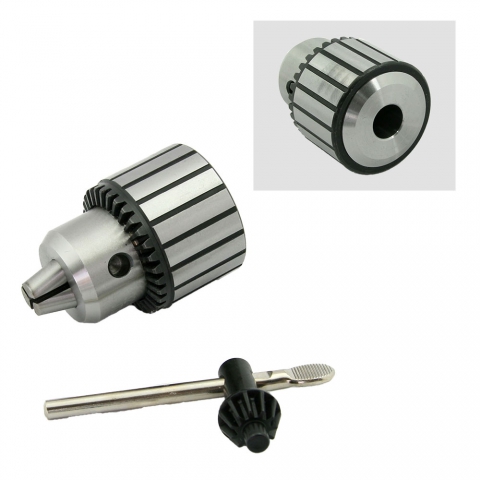

Drill Chuck, 1/2" Professional Grade

Precision made for reduced runout
Designed for heavy duty jobs
Key included
Capacity: 1/32" - 1/2"
Mounts to 33 Jacobs taper arbor

Part Number: 3153
Weight: 1.63 lb

Price: $32.95

Share this page:
http://lmscnc.com/3153

1/32" - 1/2” Capacity professional grade drill chuck. Designed for heavy jobs; all working parts are hardened and manufactured to the highest standards for durability and straight alignment.

This chuck is comparable to a Jacobs 34-33 heavy-duty drill chuck, including the runout specification of 0.004" (0.10 mm) or less. Chuck key is included.

Chris' Tips

Chris' Tips
Use a 2MT to 33JT drill chuck arbor to use this chuck with the mini lathe.

Use a 3MT to 33JT drill chuck arbor to use this chuck with the mini mill.

Specifications

Specifications
Capacity	0.04" - 0.51" (1.0 mm - 13.0 mm)
Maximum Runout	0.004" (0.10 mm)
Mount	33 Jacobs taper

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

3543 Arbor, Drill Chuck 0MT Standard to 33JT
5524 Arbor, Drill Chuck 1/2" Straight to 33JT
1894 Arbor, Drill Chuck 1MT Tang to 33JT
1883 Arbor, Drill Chuck 2MT Drawbar to 33JT
1804 Arbor, Drill Chuck 2MT Short to 33JT
2955 Arbor, Drill Chuck 2MT Standard to 33JT
1190 Arbor, Drill Chuck 2MT Tang to 33JT
1806 Arbor, Drill Chuck 3MT Drawbar to 33JT
1192 Arbor, Drill Chuck 3MT Tang to 33JT
1676 Arbor, Drill Chuck R8 to 33JT
5444 Arbor, Drill Chuck R8 to 33JT, Professional Grade
2436 Arbor, Drill Chuck, Tormach TTS to 33JT
