Dial Indicator and Magnetic Base

Dial Indicator and Magnetic Base
  • 0-1" Dial indicator
  • Magnetic base with fine adjustment
  • Permanent magnet has an 80 kg (176 lb) holding force

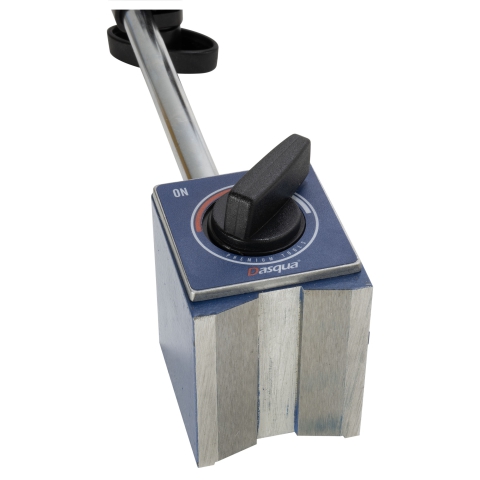

  • On/off switch makes it easy to position
  • V-groove base allows you to mount it on cylindrical surfaces
Part Number: 1593
Weight: 3.97 lb

Price: $24.95

In stock
Quantity:

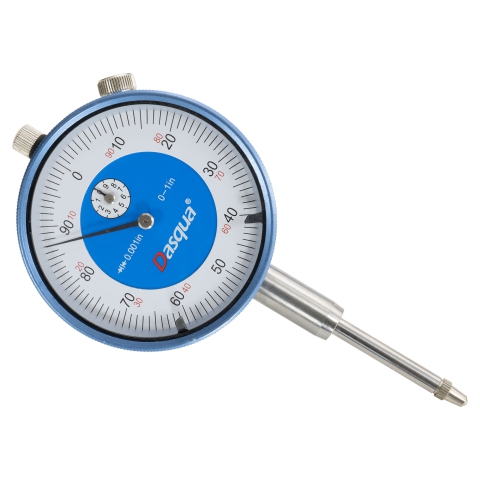

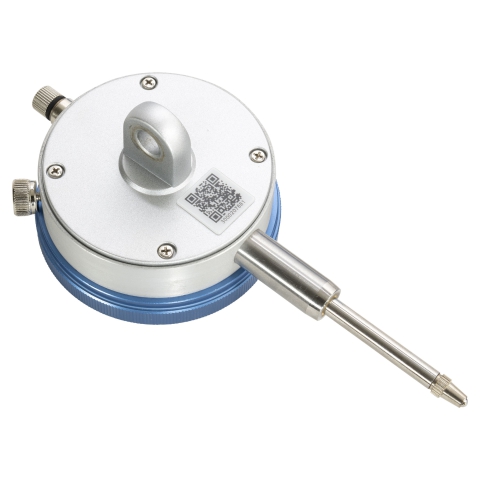

This 1" stroke magnetic dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

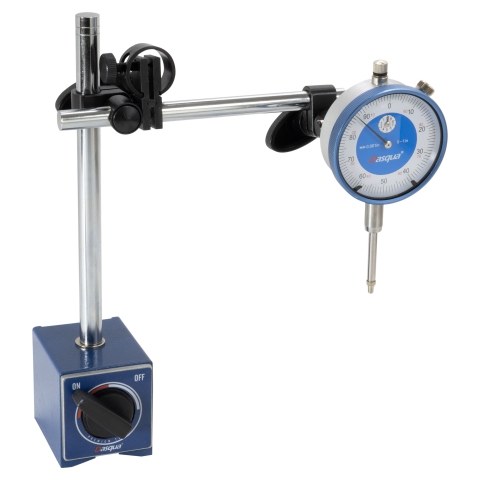

The 1593 Dial Indicator and Magnetic Base has a fine adjustment feature. The on/off switch makes it easy to position. The v-groove base allows you to mount it on cylindrical surfaces. The permanent magnet has an 80 kg (176 lb) holding force.

Chris Chris' Tips
Here are some instructions for using a dial indicator and magnetic base.

AGD Groups define the size of the indicator.

AGD Group Face Diameter
0 1.00 - 1.38" 25 - 35 mm
1 1.38 - 2.00" 35 - 50 mm
2 2.00 - 2.38" 50 - 60 mm
3 2.38 - 3.00" 60 - 75 mm
4 3.00 - 3.75" 75 - 95 mm
Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

This product contains the following items:
  Description Qty
Dial Indicator, 1" x 0.001" Dial Indicator, 1" x 0.001", P/N 1236 1
Magnetic Base Indicator Holder Magnetic Base Indicator Holder, P/N 1237 1
