Dial Indicator and Magnetic Base, Dasqua

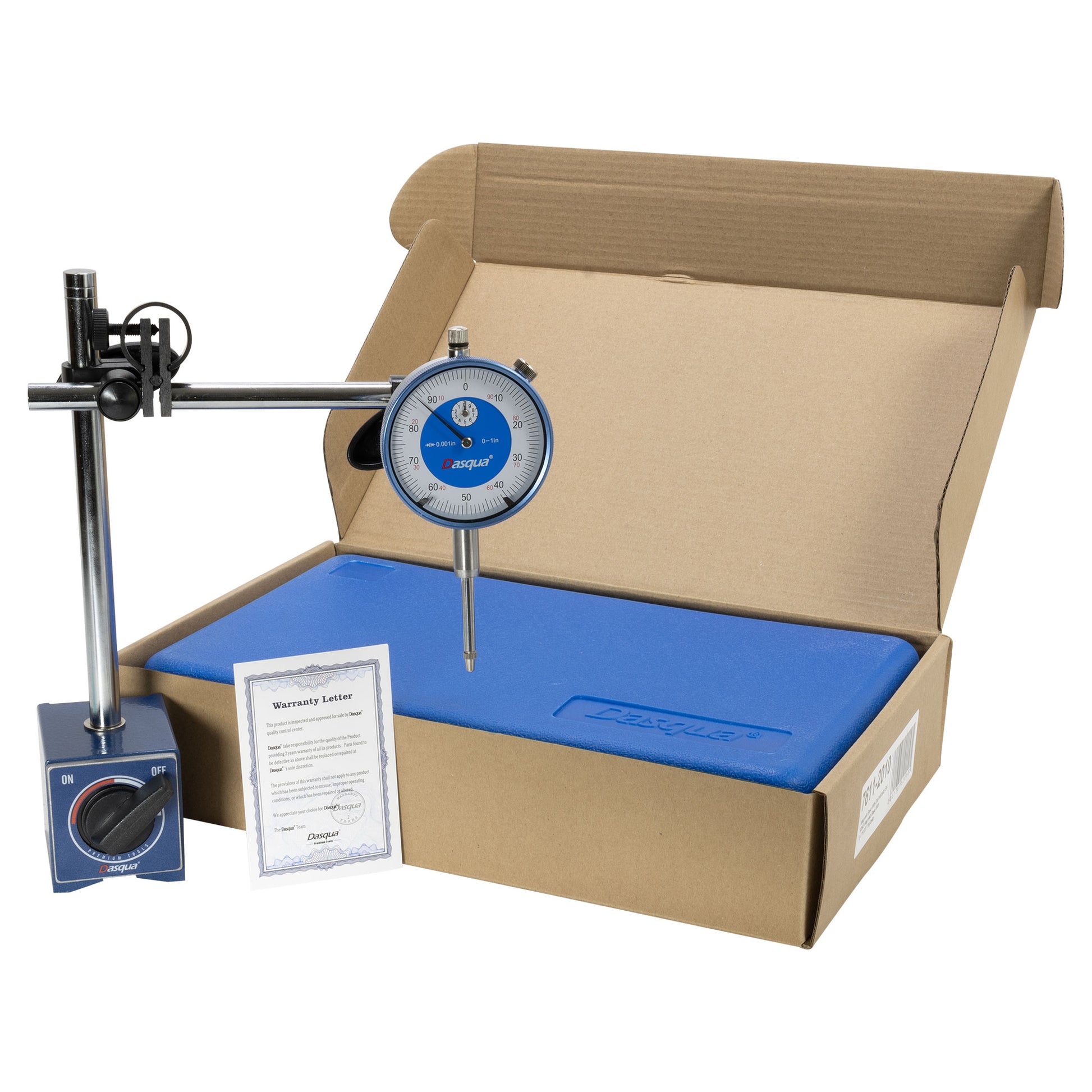

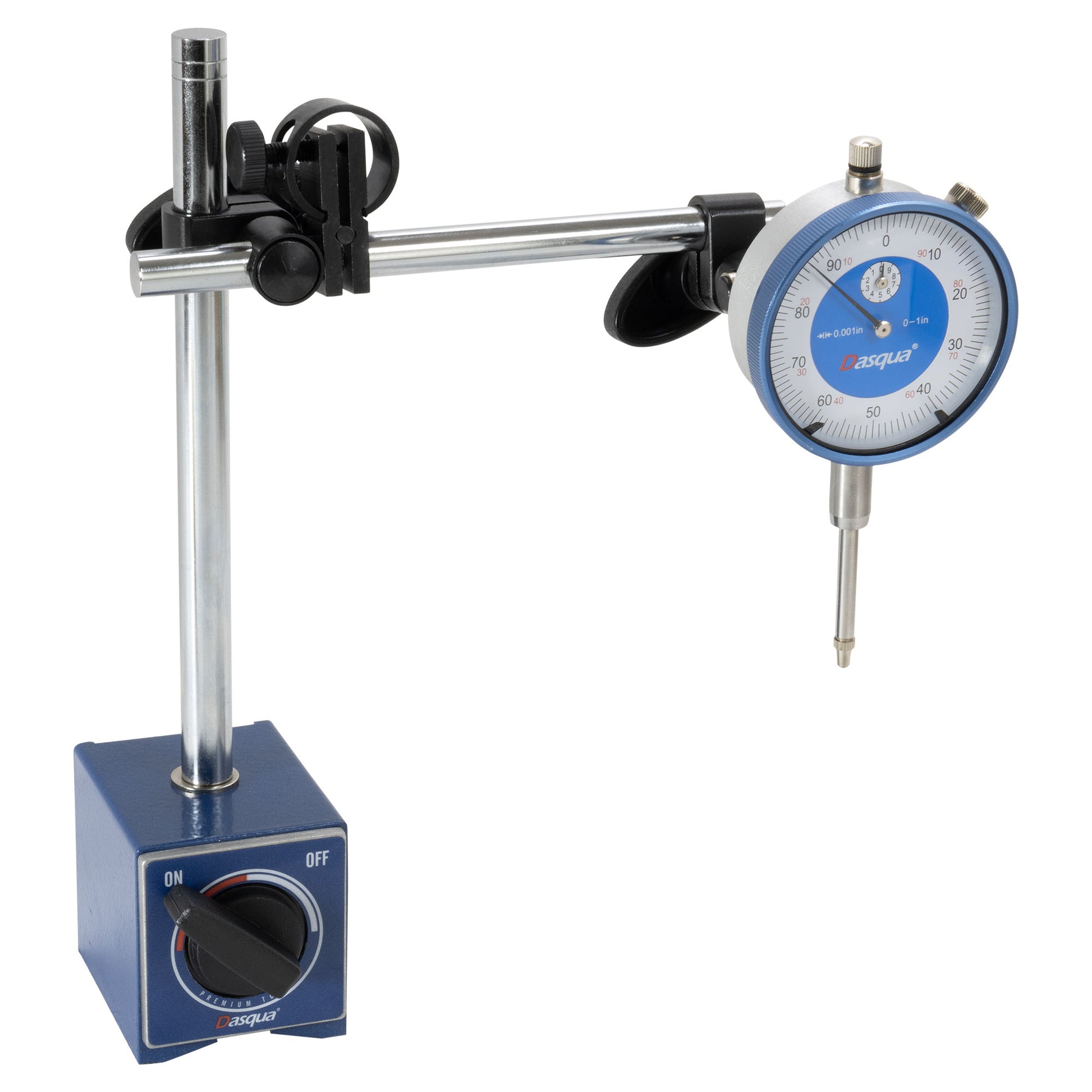

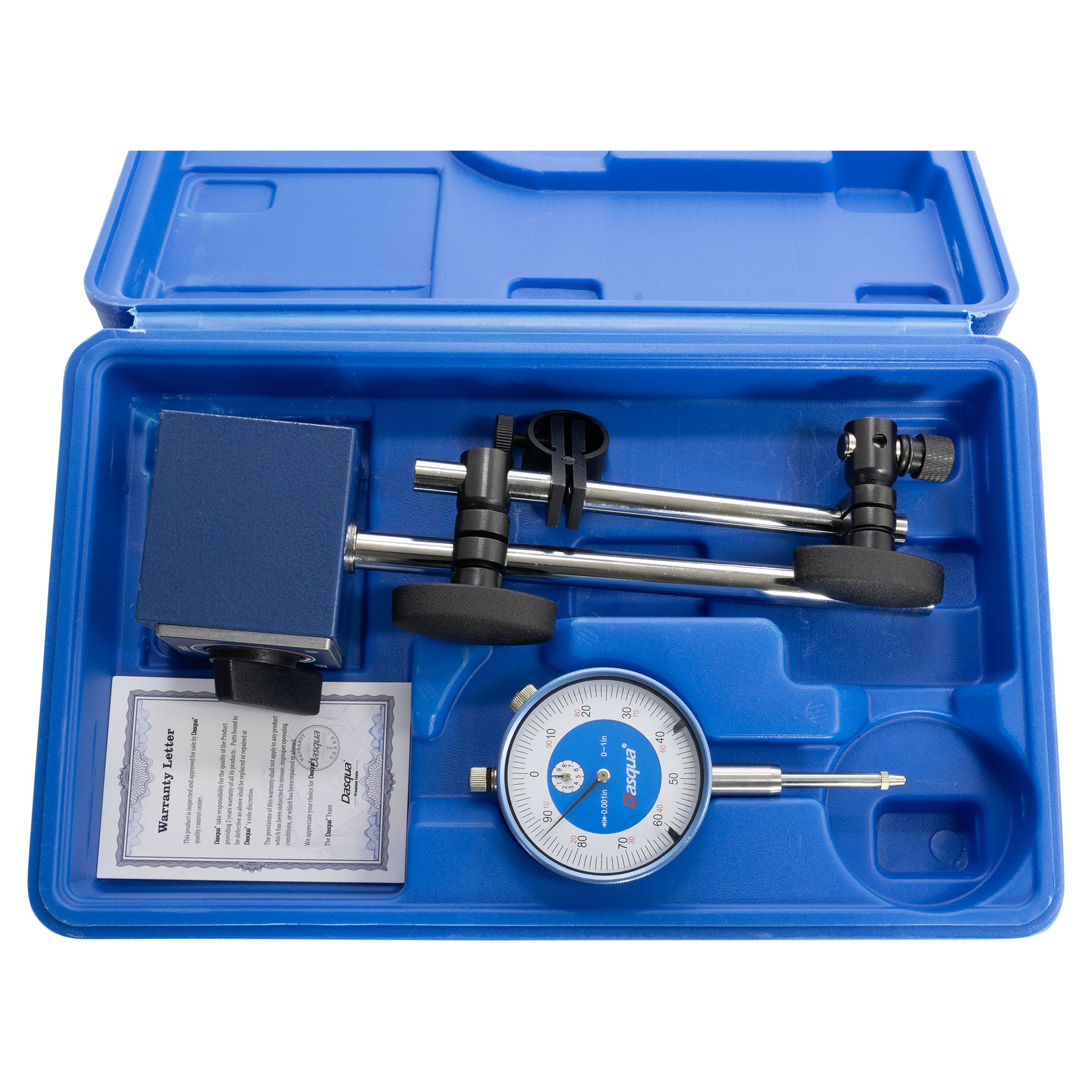

Dasqua 2 Piece Magnetic Base and 1" Indicator Set. This 1" stroke magnetic dial indicator features large, easy to read numbers and crisp graduations.

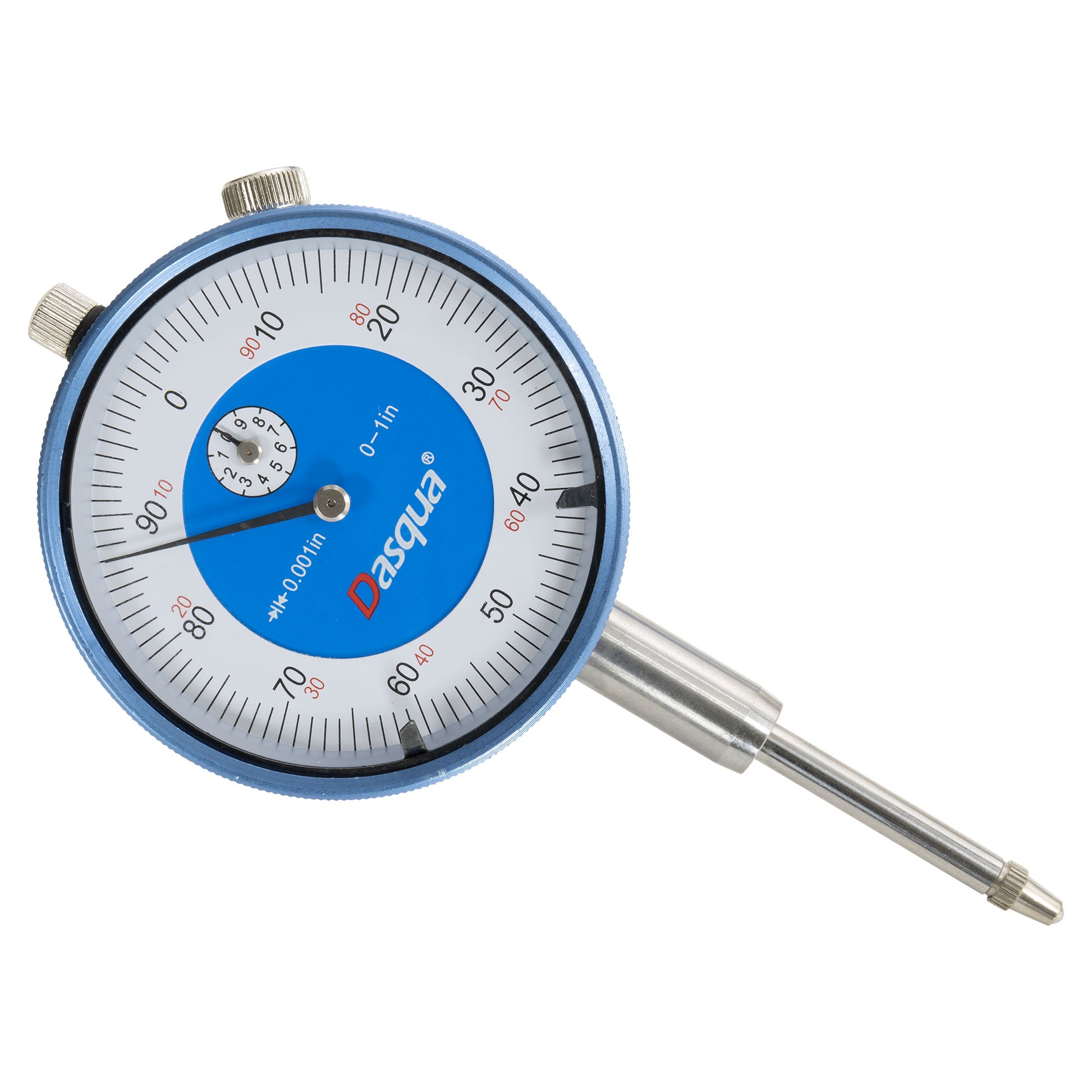

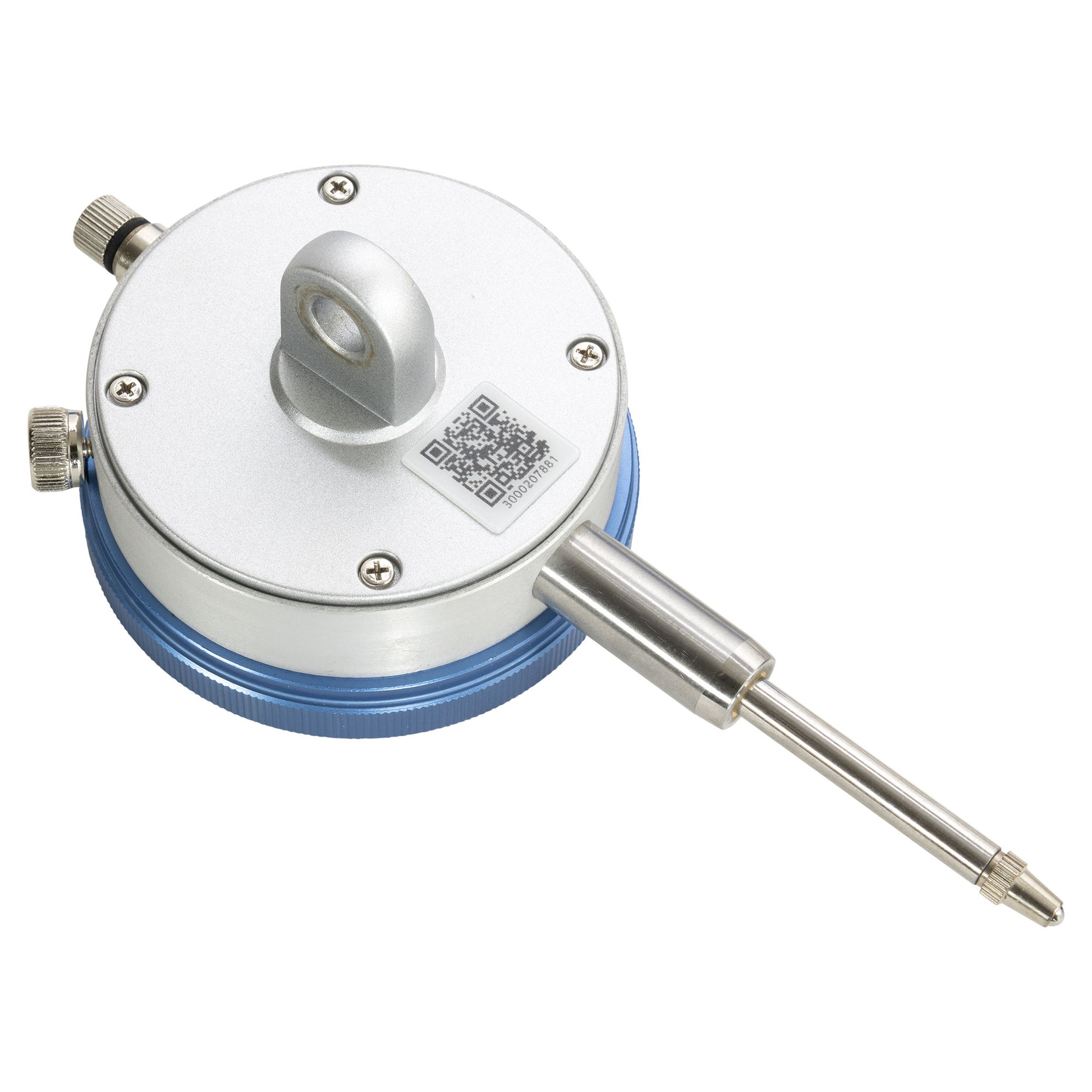

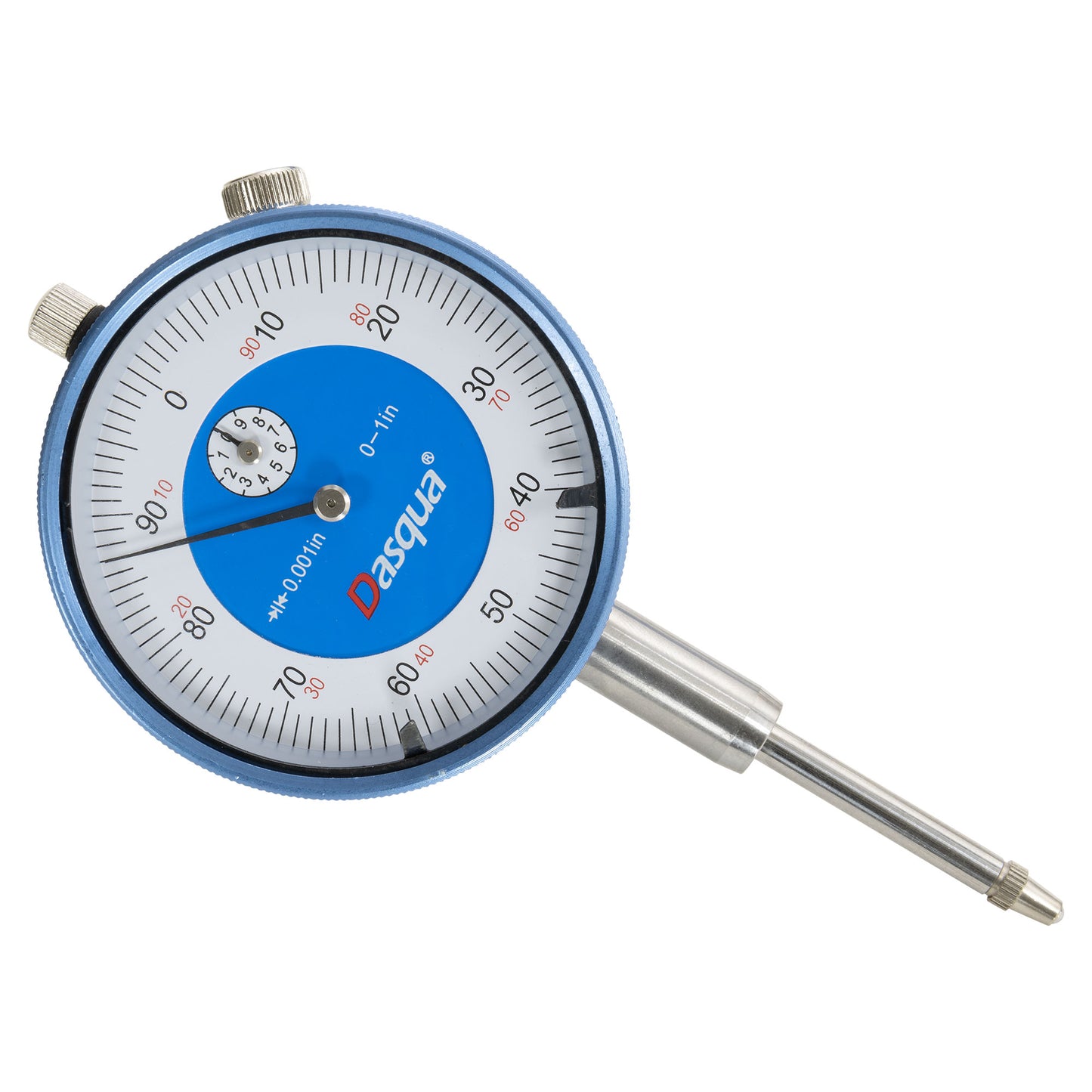

The indicator is a 0-1" lug back large measuring range dial indicator. Each revolution is 0.100". It has a satin chrome-plated steel case with a diameter of 58mm and a shank diameter of 8mm.

• accuracy is 0.002″
• hysteresis is 0.00033″
• scale divisions are 0.001".
• This indicator is strictly made in accordance with DIN878.

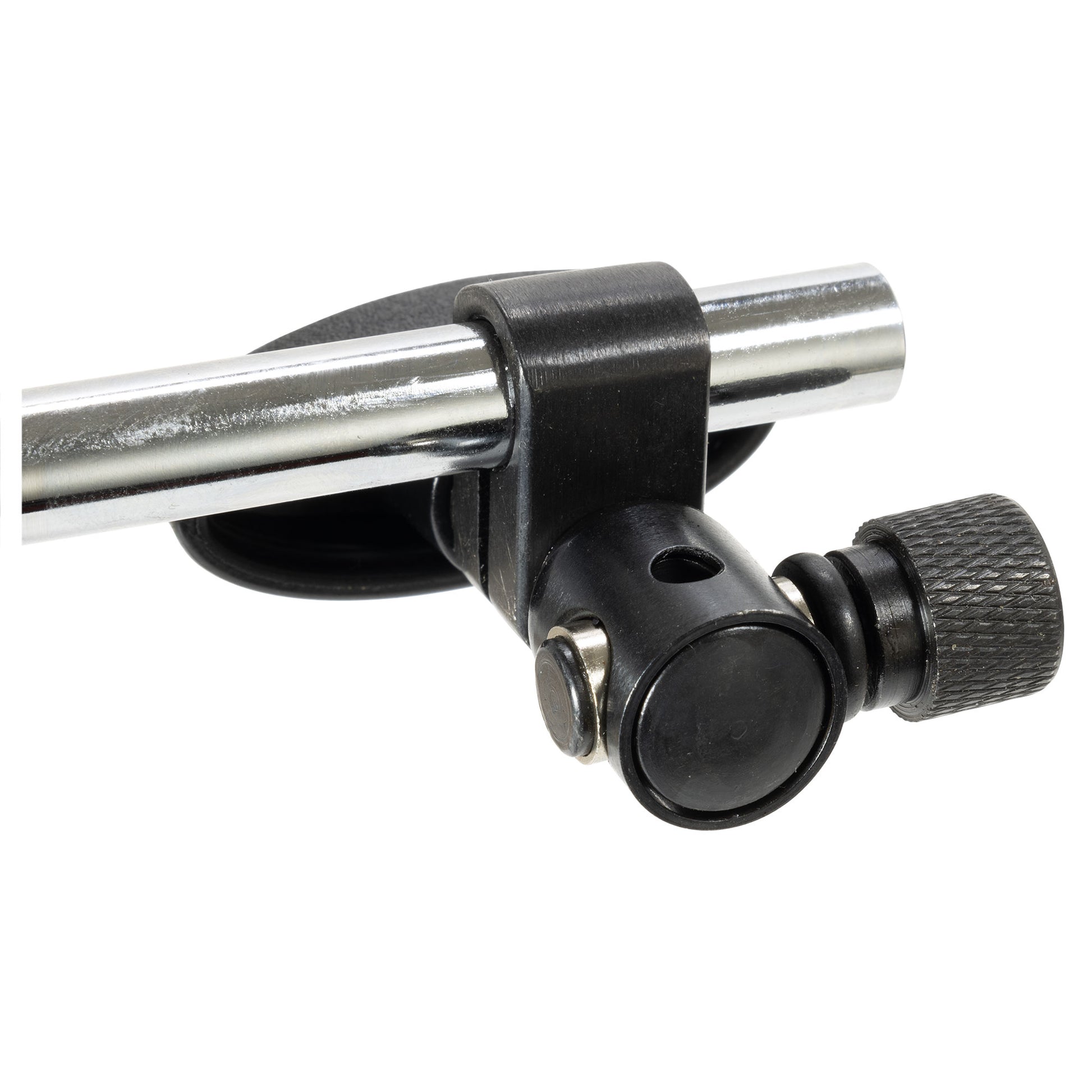

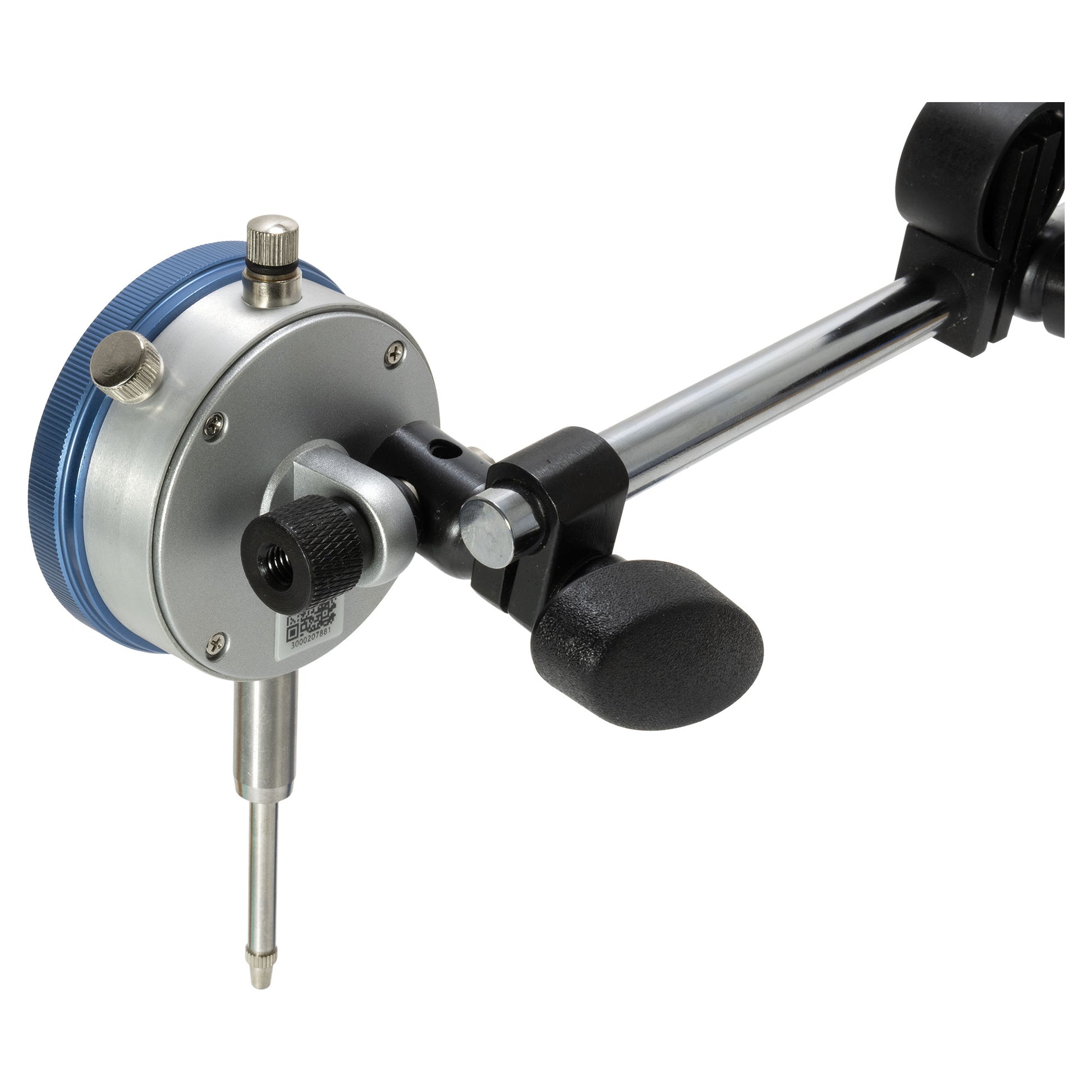

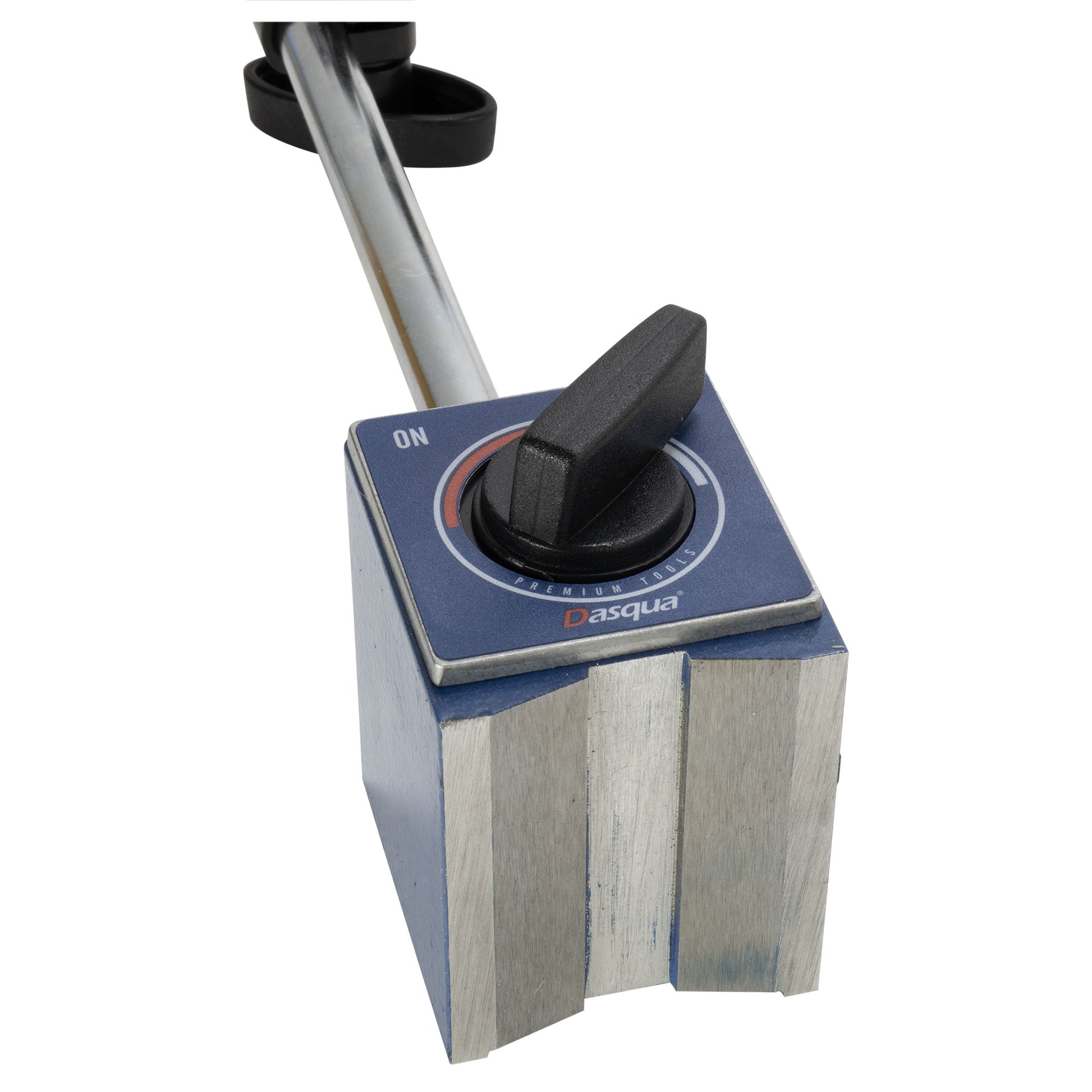

The magnetic base has 132 lbs of magnetic force with fine adjustment. It is a v-grooved base for ease of mount on cylindrical parts and has chrome plated rods. The mag base has both horizontal or vertical positioning capabilities. Smooth and easy on/off switch.

• Base is 60mm (2.36") x 50mm (1.97") x 55mm ( 2.17").
• Main rod is 12mm (.47") diameter x 176mm (6.93").
• 2nd rod is 10mm diameter (.39")x 150mm (5.91").

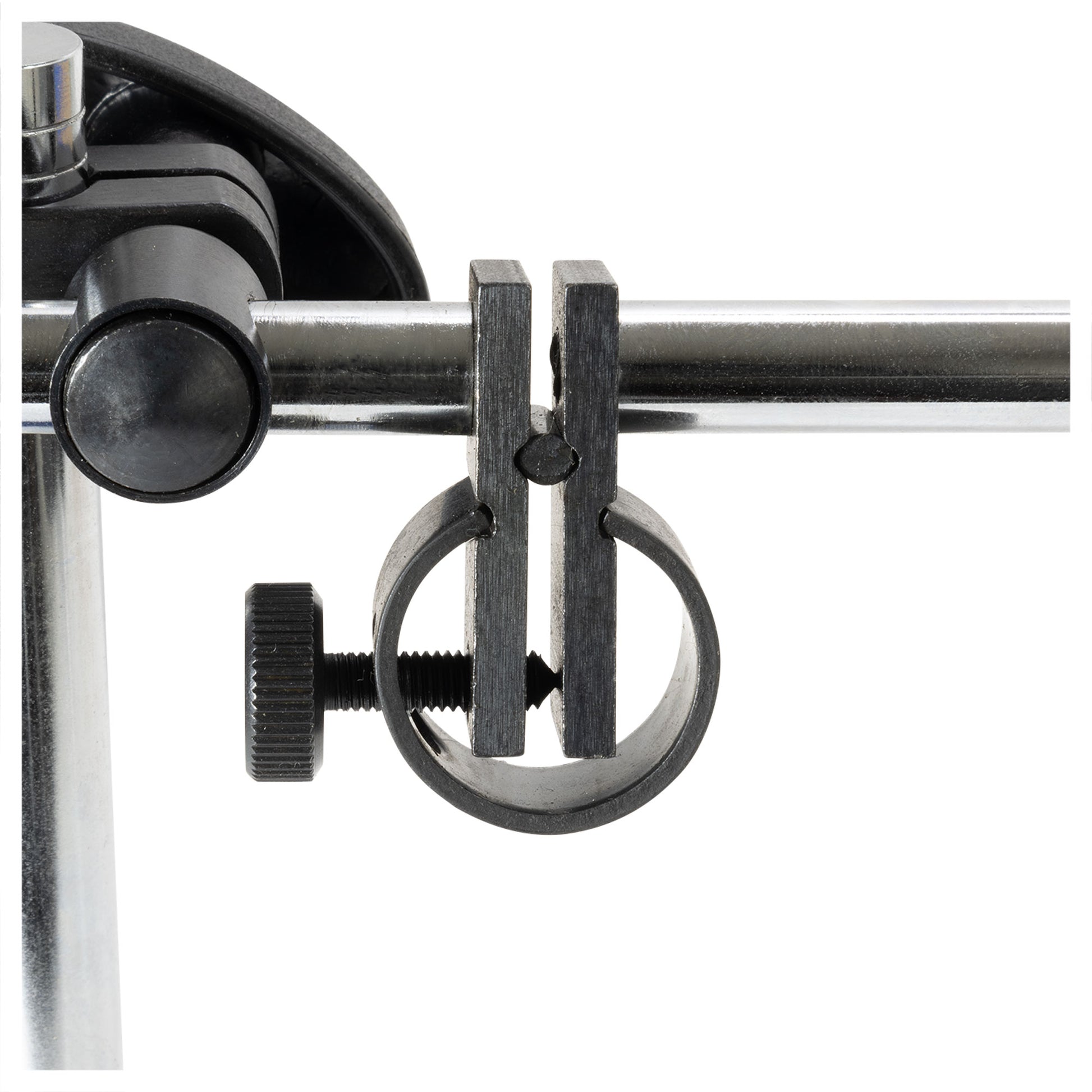

• Clamp hole diameters are 6mm (.24"), 8mm (.31") & 3/8".

* DASQUA originates from Lodi, the traditional tool manufacturing region in Italy. Since the early 1980s, Dasqua has been making precision measuring tools under OEM for major famous brands in the world. Our main products include calipers, micrometers, indicators, etc. Dasqua now focuses on manufacturing its own branded products adhering to the most strictly & well managed standards and systems. Every Dasqua measuring tool is tested for approval by an international CNAS-qualified Lab.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Here are some instructions for using a dial indicator and magnetic base.
