Screw Pitch Gage, Inch 51 Leaves, StarrettMade in United States

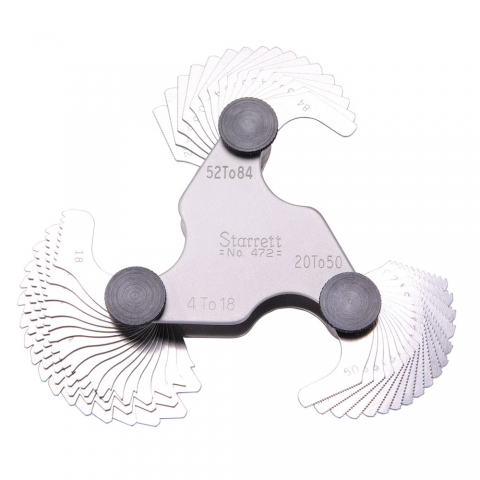

Screw Pitch Gage, Inch 51 Leaves, Starrett
  • Screw pitch gage with 51 leaves
  • Measures 60° threads from 4 - 84 TPI
  • Each blade clearly marked with thread size
  • Blades are protected in sturdy steel case
  • Locking device for each set of leaves
Part Number: 3176
Weight: 0.21 lb

Price: $105.00

In stock
Quantity:


PayPal Credit
Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

Measures 60° threads from 4 threads per inch to 84 threads per inch

Leave Sizes: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 11.5, 12, 13, 14, 15, 16, 18 threads per inch (TPI)

Leave Sizes: 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50 threads per inch (TPI)

Leave Sizes: 52, 43, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84 threads per inch (TPI)

Starrett catalog number 472
