Vise, Universal Movement 3524  (Discontinued)

Vise, Universal Movement
Part Number: 3524  (Discontinued)
Weight: 27.0 lb

Price: $1,149.95

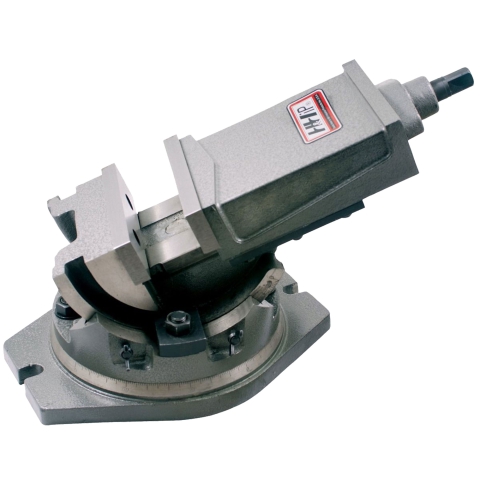

This fixture is composed of two parts; a precision vise and a swivel angle plate base

Vise revolves 360° horizontally with 3’ engraved graduations and 45° vertical with 3’ engraved graduations

Hex wrench included for locking vise at any position

Vertical angle can be adjusted with fine adjustment knob

Hardened and precision ground parallel and square within 0.0004”

Unique universal movement for precision grinding, machining, boring and other applications

Jaw width 3.75" (95.2 mm)
Jaw depth 1.18" (30.0 mm)
Maximum jaw opening 3.1" (80 mm)
Swivel Base Yes
Weight 31 lbs (14 kg)
Height with base 5.39" (136.9 mm)
Height w/o base 2.48" (63.0 mm)
Width of base 7.09" (180.1 mm)
Width w/o base 6.30" (160.0 mm)
This item ships directly from our supplier in California to you. It might be a day or two longer before it ships, and you will receive it in a separate package from other items on your order. You might receive this item a few days before or a few days after you receive items shipped from our warehouse.
