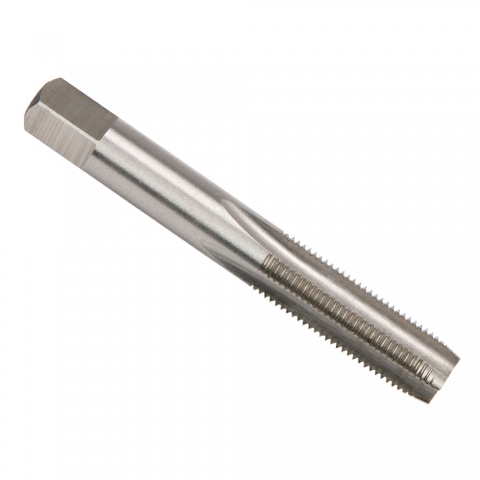

Tap, M10x1.0 Metric Fine, Plug Style
- M10x1.0 Metric Hand Tap
- Plug style (3-5 chamfered threads)
- High speed steel (HSS)
- Utilize in through or blind hole tapping
- Metric Fine Thread
Part Number: 3621
Weight: 0.08 lb
Weight: 0.08 lb
Price: $25.95
Share this page:
http://lmscnc.com/3621
http://lmscnc.com/3621
Hand taps are the most commonly used general purpose tap. They are recommended for tapping free machining steels, stainless steels, aluminum, zinc, and ductile materials.
Plug taps have 3-5 chamfered threads and are utilized in either through or blind hole tapping.
The High Speed Steel (HSS) construction gives good wear-resistance.
This is the tap for the compound rest on the mini lathe.
| Tap Type | Hand Tap |
| Thread Size | M10x1.0 |
| Class of Fit | 2H |
| Thread Limit | D5 |
| Number of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Thread Standard | Metric Fine |
| Overall Length (Inch) | 2.9375" (74.612 mm) |
| Thread Length (Inch) | 1.2500" (31.750 mm) |
Compatibility
This product works with these LittleMachineShop.com products:
HiTorque 5100 Mini Lathe - 7x16
