Dial Indicator, 0.25" x 0.001", Small Face

Dial Indicator, 0.25" x 0.001", Small Face
  • 0.25" dial indicator with 0.001" resolution
  • AGD Group I for tight locations
  • 1.5" Diameter face, 0.375" shank, #4-48 tip thread
  • Rack & contact point made of hardened stainless steel
  • Jeweled movement
Part Number: 3716
Weight: 0.27 lb

Price: $21.95

In stock
Quantity:
This 1/4" stroke dial small face dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
Chris Chris' Tips
AGD Groups define the size of the indicator.

AGD Group Face Diameter
0 1.00 - 1.38" 25 - 35 mm
1 1.38 - 2.00" 35 - 50 mm
2 2.00 - 2.38" 50 - 60 mm
3 2.38 - 3.00" 60 - 75 mm
4 3.00 - 3.75" 75 - 95 mm
Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications
Range 0.00" - 0.25" (0.0 mm - 6.3 mm)
Resolution 0.001" (0.03 mm)
A.G.D. Group 1
Face Diameter 1.5" (38 mm)
Shank Size 0.375" (9.52 mm)
Thread Tip #4-48
Dial Reading 0-100-0
Revolution 0.100" (2.54 mm)
Type Lug backing
Dial Face Continuous Dial

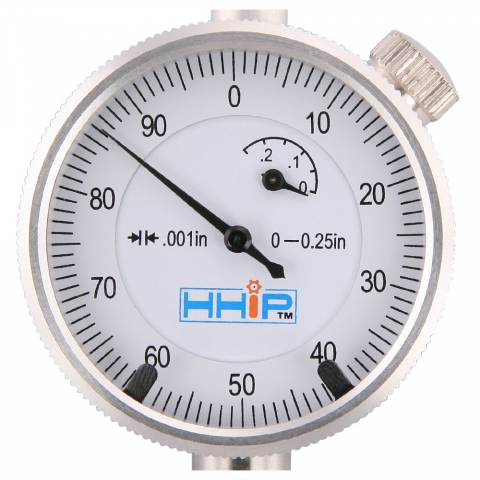

Dial Indicator Dial Face
