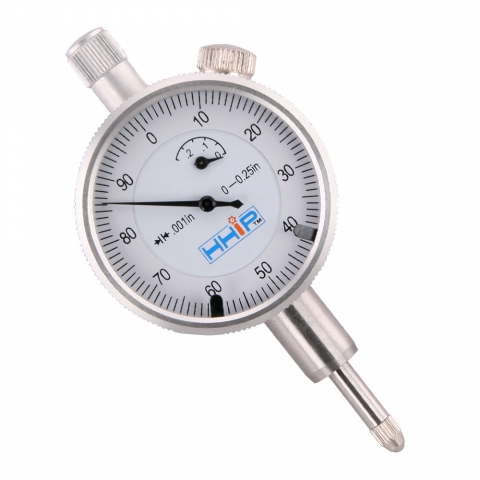

Dial Indicator, 0.25" x 0.001", Small Face

0.25" dial indicator with 0.001" resolution
AGD Group I for tight locations
1.5" Diameter face, 0.375" shank, #4-48 tip thread
Rack & contact point made of hardened stainless steel
Jeweled movement

Part Number: 3716
Weight: 0.27 lb

Price: $21.95

Share this page:
http://lmscnc.com/3716

This 1/4" stroke dial small face dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

Chris' Tips

Chris' Tips
AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications

Specifications
Range	0.00" - 0.25" (0.0 mm - 6.3 mm)
Resolution	0.001" (0.03 mm)
A.G.D. Group	1
Face Diameter	1.5" (38 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Dial Reading	0-100-0
Revolution	0.100" (2.54 mm)
Type	Lug backing
Dial Face	Continuous Dial

Photos

Dial Face
