V-Blocks, Miniature 0.03" to 0.28" Capacity

Hold miniature round parts in these small V-blocks
Bridges straddle long workpieces allowing use of hold-down screw of containing V-block
Hardened and precision ground
Square and parallel to 0.0002"
Includes fitted case

Part Number: 3718
Weight: 0.60 lb

Price: $139.95

Share this page:
http://lmscnc.com/3718

Description
Photos

Description

These mini V-blocks, designed to be held in larger V-blocks, provide a unique and universal way to hold small and intricate parts. Ideal holding fixture for grinding/indexing punches and pins, drilling, milling EDM, inspection on optical comparators. Furnished with bridges to straddle long workpieces, allowing top hold-down screw of V-block clamp to be utilized.

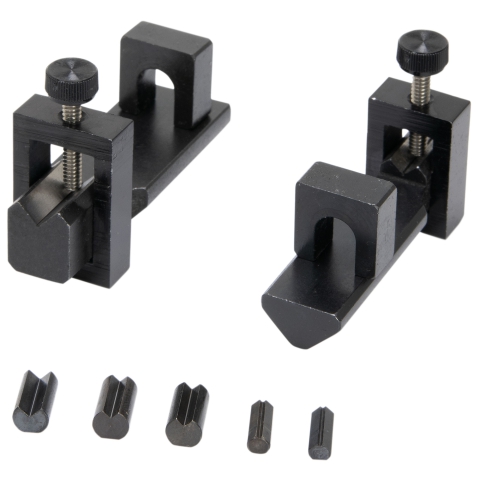

Case includes:

- 2 Super Wee Blocks Size A: 0.030" to 0.15" Size B: 0.05" to 0.28" capacity

- Bridge A and B which allows longer pieces to pass through back

- 5 upper prisms: 1/8", 5/32" and 3/16" capacity.

Hardened and high precision ground Wee Blocks, squareness and parallelism within .0002". MADE in U.S.A.
