Vise, 1" Screwless, Square Jaws
- Square jaw edges are good for gripping small parts
- Hardened and precision ground
- Rapid positioning notches
- .0002" square and parallel
Part Number: 3949
Weight: 0.60 lb
Weight: 0.60 lb
Price: $43.95
Share this page:
http://lmscnc.com/3949
http://lmscnc.com/3949

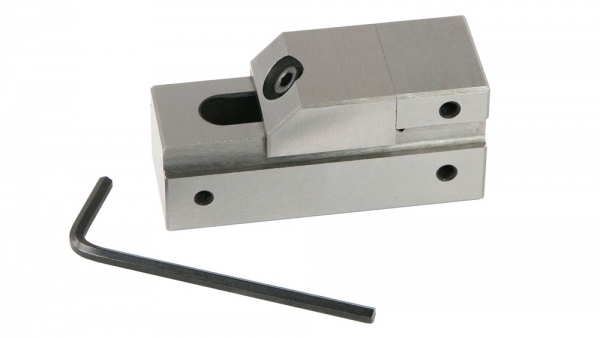

This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002".
The jaws are 3/8" deep and open to 1".
The vise is 2-5/8" long x 1" wide.
| Jaw Depth | 0.375" (9.52 mm) |
| Maximum Jaw Opening | 1" (25 mm) |
| Weight | 0.6 lbs (0.3 kg) |
| Length | 2.625" (66.67 mm) |
