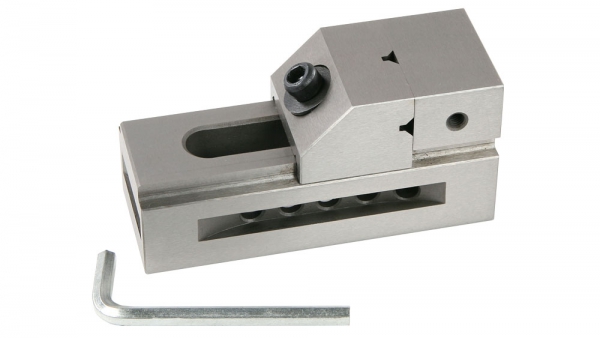

Vise, 1.5" Screwless
- Hardened and precision ground
- Jaw can be opened and closed without unbolting from work surface
- 1.5" jaw width
- Square and parallel .0002"
- Overall length is 100 mm
Part Number: 3950
Weight: 1.90 lb
Weight: 1.90 lb
Price: $64.95
Share this page:
http://lmscnc.com/3950
http://lmscnc.com/3950
Related Products
This high precision toolmakers screwless vise has a one-piece body. The body and jaws are hardened to Rc 58-62. All sides are flat, square, and parallel to 0.0002".
The jaws are 0.75" deep and open to 1.5".
The vise is 3.94" long x 1.5" wide.
| Jaw Depth | 0.75" (19.0 mm) |
| Maximum Jaw Opening | 1.5" (38 mm) |
| Table to Bed | 1.21" (30.7 mm) |
| Table to Clamping Slot | 0.46" (11.7 mm) |
| Height | 1.97" (50.0 mm) |
| Length | 3.94" (100.1 mm) |
| Width | 1.60" (40.6 mm) |
| Weight | 1.9 lbs (0.9 kg) |
