Pulley, Timing, Motor, HiTorque Mini Mill

Part Number: 4016
Weight: 0.07 lb

Price: $21.84

Share this page:
http://lmscnc.com/4016

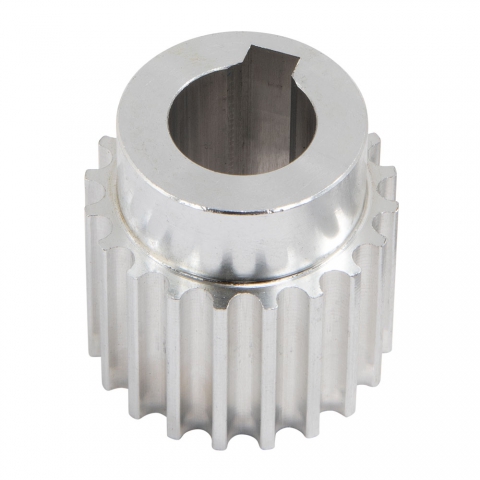

Toothed belt motor pulley on the HiTorque Mini Mill.

This is a timing belt pulley for type 5M belts.

It has 20 cogs. The bore is 14 mm in diameter and has a 5 mm keyway. The total length of the pulley and hub is 31 mm.

In your instruction manual, this part appears on the parts list as:

Item No	Models
10	LittleMachineShop.com 3900 HiTorque Mini Mill Various SX2L-US SIEG Mini Mill
130	LittleMachineShop.com 3960 HiTorque Mini Mill LittleMachineShop.com 3990 HiTorque Mini Mill LittleMachineShop.com 4190 HiTorque Mini Mill Various SX2LF-US SIEG Mini Mill
24	LittleMachineShop.com 6450 HiTorque Mini Mill
97	BusyBee CX612 Craftex Mini Mill Micro-Mark 84630 MicroLux Mini Mill Various SX2-US SIEG Mini Mill

Click your model to see the complete parts list.
