Dial Indicator, 1" x 0.001", Professional Grade

Z-Limit brand guarantees professional quality
0-1" dial indicator with 0.001" resolution
AGD Group 2 with 6 jewel movement
Dual back; includes flat back and lug back
Calibration certificate included

Part Number: 4112 (Discontinued)
Weight: 0.67 lb

Price: $32.95

Share this page:
http://lmscnc.com/4112

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". The indicator has a 2.25" Diameter face, 0.375" shank, and #4-48 tip thread.

Includes a durable plastic case.

Chris' Tips

Chris' Tips
At rest, an indicator’s needle points at a random position, usually in the 10 o’clock range. This is completely normal, as the needle’s position at rest is irrelevant to the use of an indicator.

An indicator is only useful when the tip is bearing against a surface to be measured. The action of pressing the tip against the surface moves the needle, also to some random position. But this position is relevant; turn the bezel so that the needle is pointing at zero. Now you can make measurements, both positive and negative, relative to the starting position.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications

Specifications
Range	0" - 1" (0 mm - 25 mm)
Resolution	0.001" (0.03 mm)
A.G.D. Group	2
Face Diameter	2.25" (57.1 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Dial Reading	0-100-0
Revolution	0.100" (2.54 mm)
Type	Dual Back
Dial Face	Continuous Dial

Photos

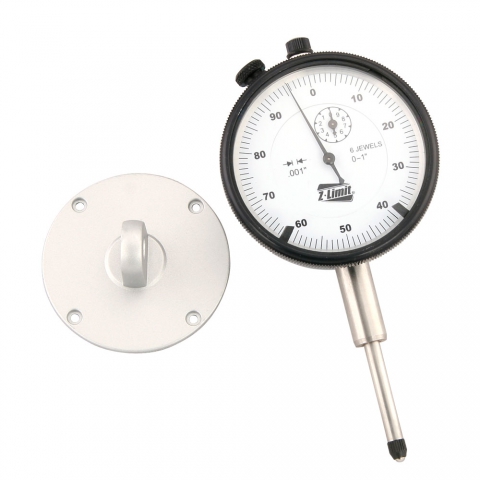

1 inch x 0.001 inch Professional Grade Dial Indicator

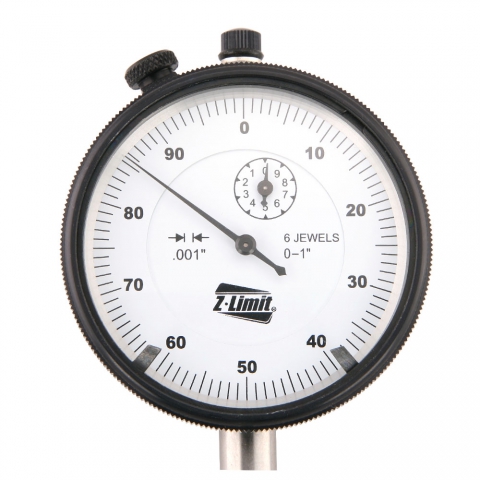

Dial Face
