Digital Position Readout, 3-Axis Magnetic Scale, DRO Pros Mill

Magnetic scales can be cut to exact length you need
Easy to use. More buttons, most intuitive layout--just walk up and operate
5 micron (0.0002") resolution
Clearly-written full-color manual and Lifetime warranty

Part Number: 4239
Weight: 24.0 lb

Price: $1,215.00

This product is currently backordered.

Estimated availability:
Unknown
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/4239

Description

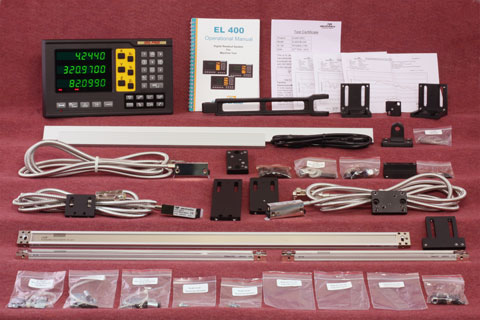

The DRO PROS EL400 three-axis mill package includes everything you need: the display head, 3 magnetic scales 12" x 30" x16" maximum travel, detailed installation instructions, a detailed full-color operator’s manual, Lifetime warranty, mounting arm, mounting hardware, and universal mounting brackets. Additionally, the display has a USB port on the back, ensuring it won't become obsolete when a new software update is released.

Magnetic scales are impervious to liquid yet they are slimmer than glass scales. They’re easier to mount and more durable than other scales. Simply cut the scales to the length you need and mount them. See the instructions on the Chris’ Tips tab.

This digital readout kit includes the following features: half function, inch/metric conversion, absolute/incremental modes, axis home reference, machine reference, sub datums, bolt-hole circle (pcd), arc bolt hole, arc contouring, grid hole function, line hole function, calculator (trigonometric), encoder fail detection, memory backup.

Operates on 120V or 240V AC

Chris' Tips

Chris' Tips
One of the major advantages of magnetic scales is the ability to cut them to exactly the length you need. Here are instructions on how to cut magnetic scales.

Scale-Based DRO Packages are designed to mount on any machine within the range of the scales. They all come with 'universal' mounting brackets. These mounting brackets are probably all you need to mount the DRO on large machines. On smaller machines (including mini lathes and mini mills) you will probably need to make some mounting brackets. Note that the Bluetooth DRO packages, except the universal models, come with all the brackets required for the machines they support. All scale-based DRO installations require drilling and tapping a number of holes in the machine.

The biggest challenge is usually the cross slide on small lathes and the X-axis on small mills. On small lathes, the answer is sometimes to mount the DRO scale hanging in space behind the cross slide. On small mills, the smaller cross section of the Shooting Star and the DRO Pros magnetic scales can make it significantly easier to mount the X-axis scale behind the table without restricting the table travel. Glass scales are a challenge to mount on small machines.

Features

Half Function

Inch/metric conversion

Absolute/incremental modes

Axis home reference

Machine Reference

Sub Datums

Bolt-hole circle (PCD)

Arc Bolt Hole

Arc Contouring

Grid Hole function

Line Hole function

Calculator (Trigonometric)

Encoder fail detection

Memory backup

Specifications

Specifications
Repeatability	10 microns
Resolution	5 microns
Specified Accuracy	15 microns / 1 m travel
Accuracy / Foot	0.0002" (0.005 mm)
Accuracy / 100 Mm	0.0001" (0.002 mm)
Scales Cut to Length by User	Yes
Scale Technology	Magnetic
Scale Protection	Coolant & dust proof to IP67
Voltage	120-240 V
Clear to Zero	Yes
Direct Entry of Position	Yes
Inch/mm Display	Yes
Power Off Memory	Yes
Reversible Count Direction	Yes
Find Center	Yes
Bolt Circles	Yes
Bolt Lines	Yes
Preset Points	Yes
Tool Offsets	No
Radius/Diameter	Yes
Incremental/Absolute	Yes
Calculator	Yes
Arc Machining	Yes
Linear Error Compensation	Yes
Made In	India
Warranty	Lifetime
Phone Tech Support	Free

Photos

3-Axis display

Magnetic Scales

Shipping

This item ships directly from our supplier in California to you. It might be a day or two longer before it ships, and you will receive it in a separate package from other items on your order. You might receive this item a few days before or a few days after you receive items shipped from our warehouse.
