Dial Indicator, 0.5" x 0.001", Professional Grade, Dasqua

large, easy to read numbers and crisp graduations
0-0.5" dial indicator with 0.001" resolution
Satin chrome plated steel case
Strictly made in accordance with D1N878.
Limit indicator clips are included.

Part Number: 4285
Weight: 0.27 lb

Price: $24.95

Share this page:
http://lmscnc.com/4285

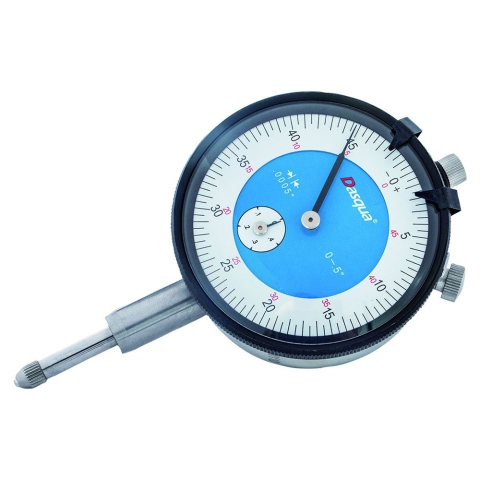

Dasqua 0-0.5" Lug Back Dial Indicator. This 0.5" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.050", indicated by the revolution counter. Satin chrome plated steel case.

• Resolution is 0.001".

• .0005" Graduation.

• 3/8" Stem.

• 4-48 Thread.

• Casting diameter is 58mm.

• Shank diameter is 8mm.

• Strictly made in accordance with D1N878.

• Limit indicator clips are included.

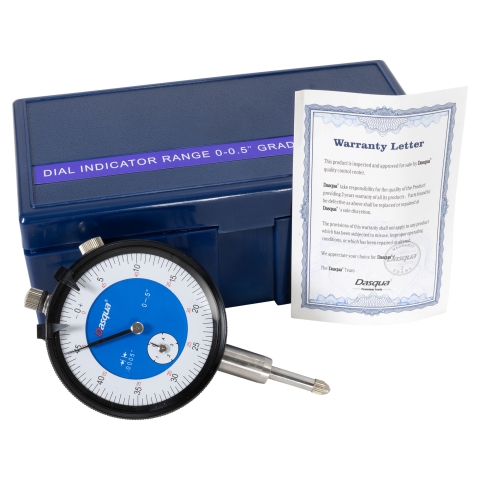

Used to measure surface flatness, axial runout and to check tool set up and squareness. This indicator is made and inspected in the same factory as some of Europe's best-known brands. Includes a durable plastic case.

* DASQUA originates from Lodi, the traditional tool manufacturing region in Italy. Since the early 1980s, Dasqua has been making precision measuring tools under OEM for major famous brands in the world. Our main products include calipers, micrometers, indicators, etc. Dasqua now focuses on manufacturing its own branded products adhering to the most strictly & well managed standards and systems. Every Dasqua measuring tool is tested for approval by an international CNAS-qualified Lab.

Chris' Tips

Chris' Tips
At rest, an indicator’s needle points at a random position, usually in the 10 o’clock range. This is completely normal, as the needle’s position at rest is irrelevant to the use of an indicator.

An indicator is only useful when the tip is bearing against a surface to be measured. The action of pressing the tip against the surface moves the needle, also to some random position. But this position is relevant; turn the bezel so that the needle is pointing at zero. Now you can make measurements, both positive and negative, relative to the starting position.

AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Here is a video about the Dasqua brand.

Specifications

Specifications
Range	0.00" - 0.50" (0.0 mm - 12.7 mm)
Resolution	0.001" (0.03 mm)
A.G.D. Group	1
Face Diameter	2" (38 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Dial Reading	0-100-0
Type	Flat Back
Dial Face	Continuous Dual Reading
