Handwheel, Main, Bench Lathe

Main handwheel bench lathe
Fits SIEG SC4 and HiTorque bench lathes
92 mm outside diameter
Fits 20 mm shaft (no key)
Bore is 36 mm, handle threading is M8

Part Number: 4414
Weight: 1.56 lb

Price: $26.95

Share this page:
http://lmscnc.com/4414

Carriage main handwheel for HiTorque Bench Lathes and SIEG SC4 bench lathes. See Used On tab for reference to machines using this handwheel and the drawing number. The hand wheel is 92 mm in diameter. It mounts on a 20 mm shaft with no key. The length through the bore is 36 mm. There is an M8 threaded hole for a handle.

See Used On tab for reference to machines using this handwheel and the drawing number.

Photos

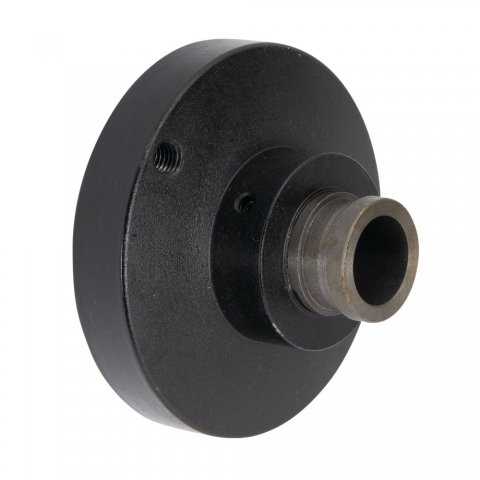

Back Side of Handwheel

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
328	LittleMachineShop.com 3536 HiTorque Bench Lathe - 8.5x16 LittleMachineShop.com 3540 HiTorque Bench Lathe - 8.5x20 Various SC4-US SIEG Bench Lathe Travers Tools OT218410 OTMT Bench Lathe - 8.5x16 LittleMachineShop.com 7500 HiTorque Bench Lathe - 8.5x20

Click your model to see the complete parts list.
