Cover, Spindle Bearing, Mini Lathe

Spindle Bearing Cover
OD 80mm, ID 49mm
Fits HiTorque mini lathes
Fits SIEG SC2 mini lathes

Part Number: 4422
Weight: 0.04 lb

Price: $4.33

Share this page:
http://lmscnc.com/4422

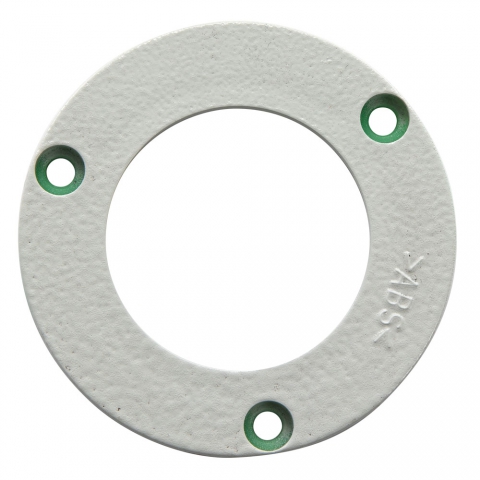

This is the cover for the spindle bearings and is used on HiTorque mini lathes and SIEG SC2 mini lathes. Note, this cover does not have a notch for the intermediate shaft.

Outside diameter 80 mm, Inside diameter 49 mm.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Photos

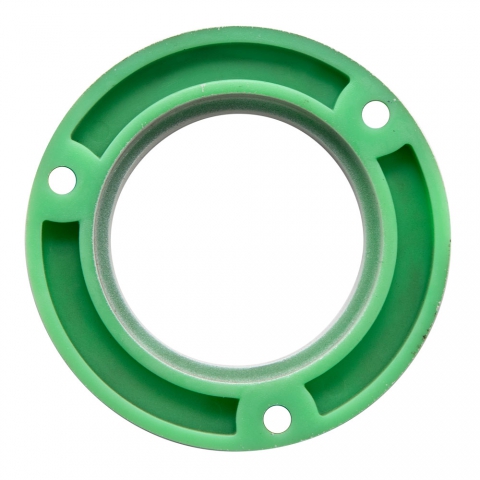

Reverse View

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
2	LittleMachineShop.com 4100 HiTorque Mini Lathe - 7x12 LittleMachineShop.com 4200 HiTorque Mini Lathe - 7x12 LittleMachineShop.com 5100 HiTorque Mini Lathe - 7x16 LittleMachineshop.com 5200 HiTorque Mini Lathe - 7x16 Various SC2-US SIEG Mini Lathe LittleMachineShop.com 7300 HiTorque Mini Lathe - 7x16 LittleMachineShop.com 7350 HiTorque Mini Lathe - 7x16 Micro-Mark 84631 MicroLux Mini Lathe - 7x16
30	LittleMachineShop.com 7450 HiTorque Mini Lathe - 7x16

Click your model to see the complete parts list.
