Tooling Plate, 6 x 12"Made in United States

Tooling Plate, 6 x 12"
  • Made from aluminum plate 3/4" thick
  • Plate is 6" x 12"
  • 220 Holes tapped 1/4"-20, 72 holes for locating pins
  • Includes clamping kit
  • Designed for small work pieces
Part Number: 4084
Weight: 6.13 lb

Price: $139.95

This product is currently backordered.

Estimated availability:
31-Oct-2023
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.



PayPal Credit
OUT OF STOCK. MORE ON THE WAY!

SELECT "NOTIFY ME" AND WE'LL HONOR SALE PRICE WHEN BACK IN STOCK...

Solid 6" x 12" aluminum tooling plate with 1/4"-20 tapped holes, clamping kit, and locating pins.

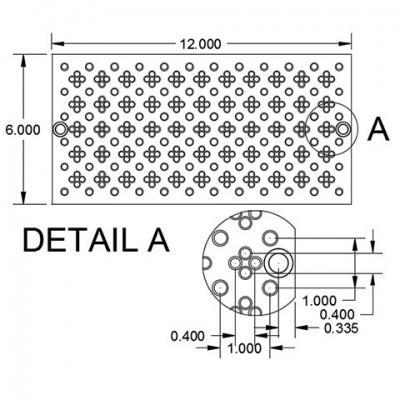

There are 220 1/4"-20 tapped holes. There are 55 diamond patterns of 4 holes that are 3/8" C to C. The diamond patterns are on a 1" x 1" grid.

There are 72 1/4" holes for locating pins on a 1" x 1" grid.

At each end there is a counterbored hole for a 3/8" socket head cap screw.

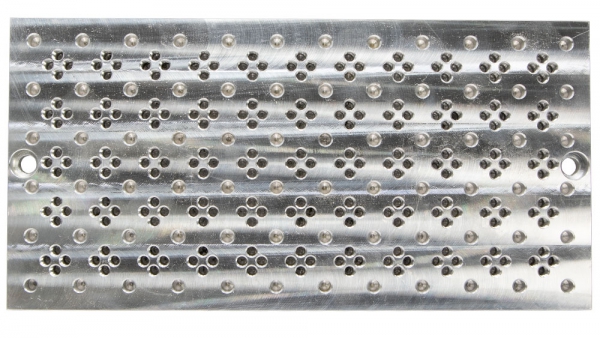

"Tooling Plate Face detail

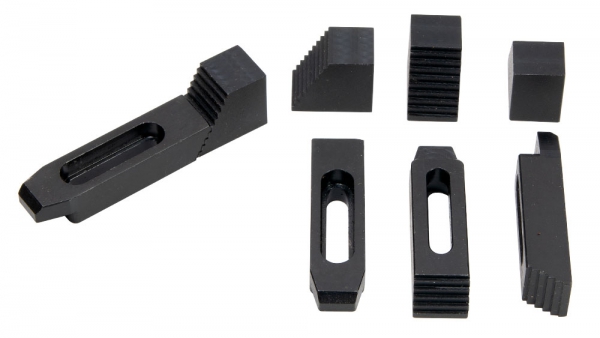

"Tooling Plate Clamps

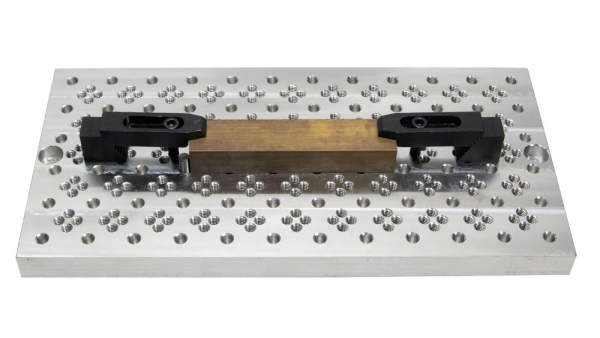

"Tooling Plate Workpiece clamped

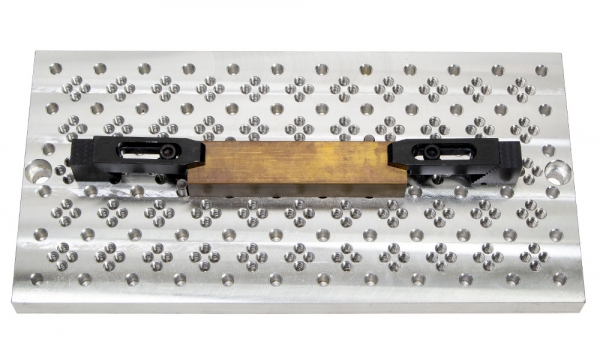

"Tooling Plate Workpiece clamped - veiw from above

Tooling Plate, 6 x 12"

tooling plate 6 x 12 inch

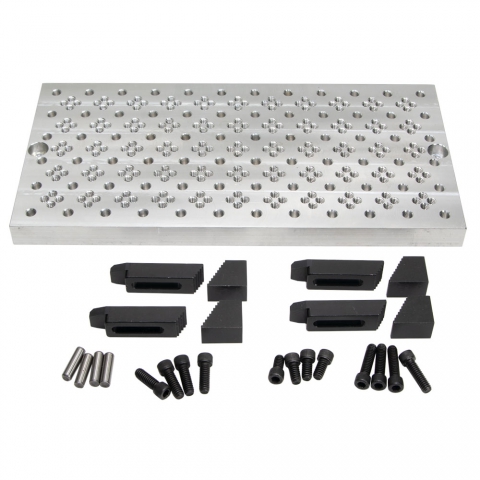

  • 1 - Tooling plate, 6" x 12"
  • 4 - Clamp bars 2-3/8" long
  • 4-  Step blocks 1" tall
  • 4 - 1/4" x 3/4" locating pins
  • 4 - 1/4"-20 x 1/2" socket head cap screws
  • 4 - 1/4"-20 x 3/4" socket head cap screws
  • 4 - 1/4"-20 x 1" socket head cap screws
