Dayton CNC
Tooling/Fixture Plate (12" x 6")
Tooling/Fixture Plate (12" x 6")
Made in United States of America (USA)
SKU:4084
Regular price
$139.95 USD
Regular price
Sale price
$139.95 USD
Unit price
per
Shipping calculated at checkout.
In stock
Key Features
Key Features
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Description

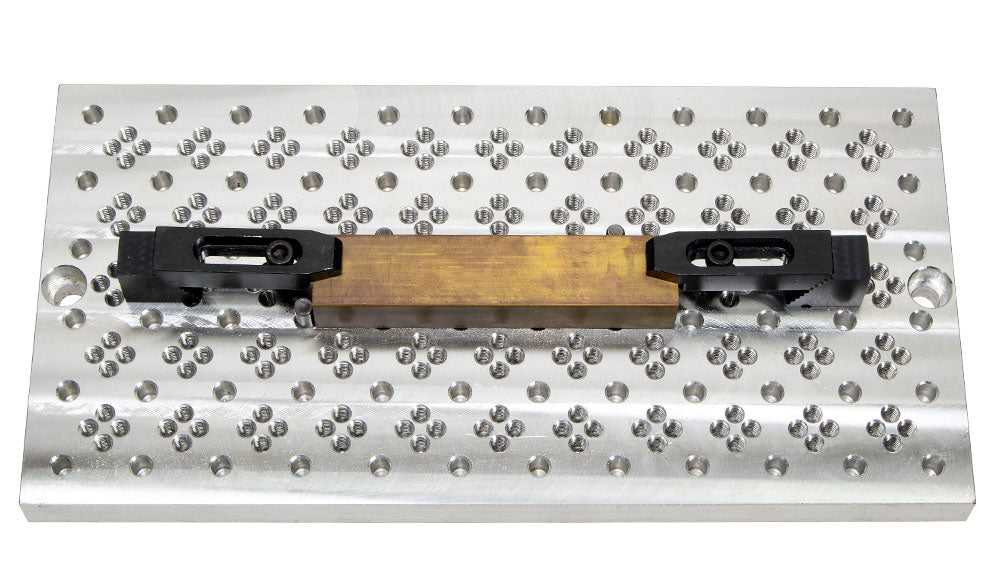

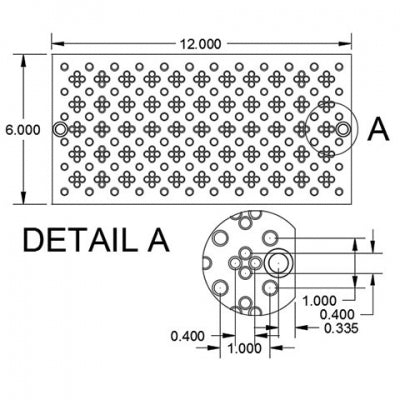

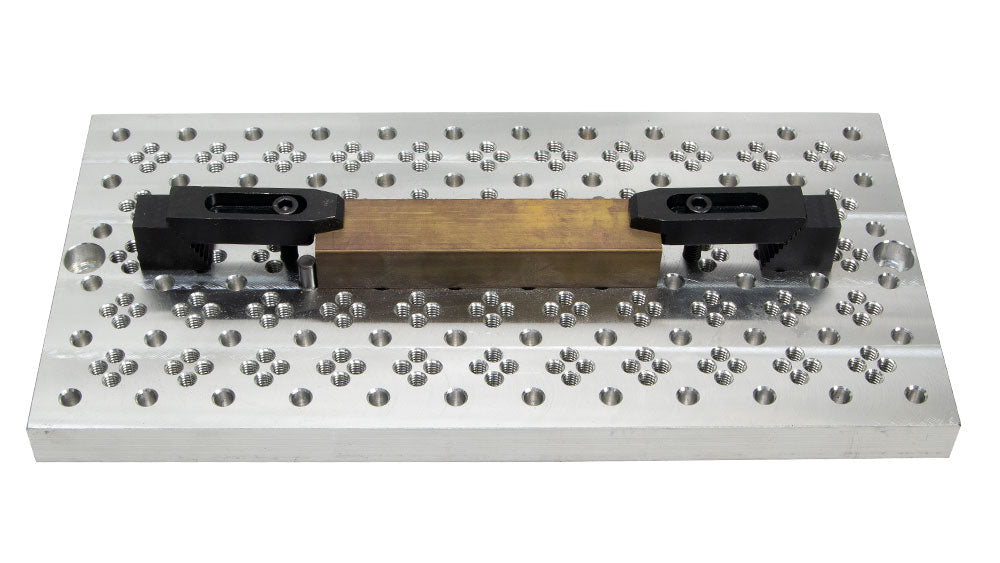

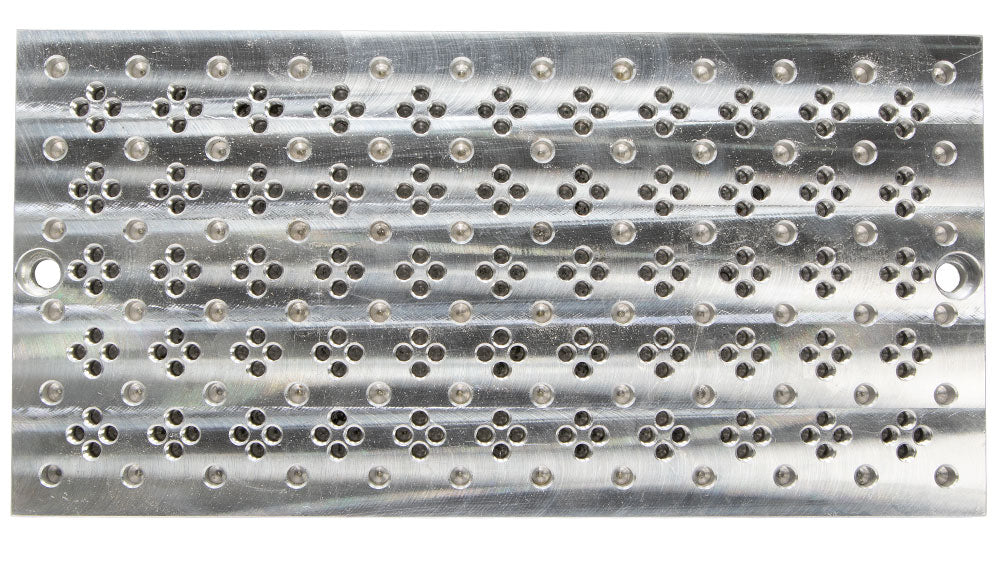

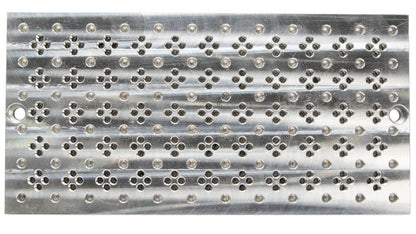

Solid 6" x 12" aluminum tooling plate with 1/4"-20 tapped holes, clamping kit, and locating pins. There are 220 1/4"-20 tapped holes. There are 55 diamond patterns of 4 holes that are 3/8" C to C. The diamond patterns are on a 1" x 1" grid. There are 72 1/4" holes for locating pins on a 1" x 1" grid. At each end there is a counterbored hole for a 3/8" socket head cap screw.

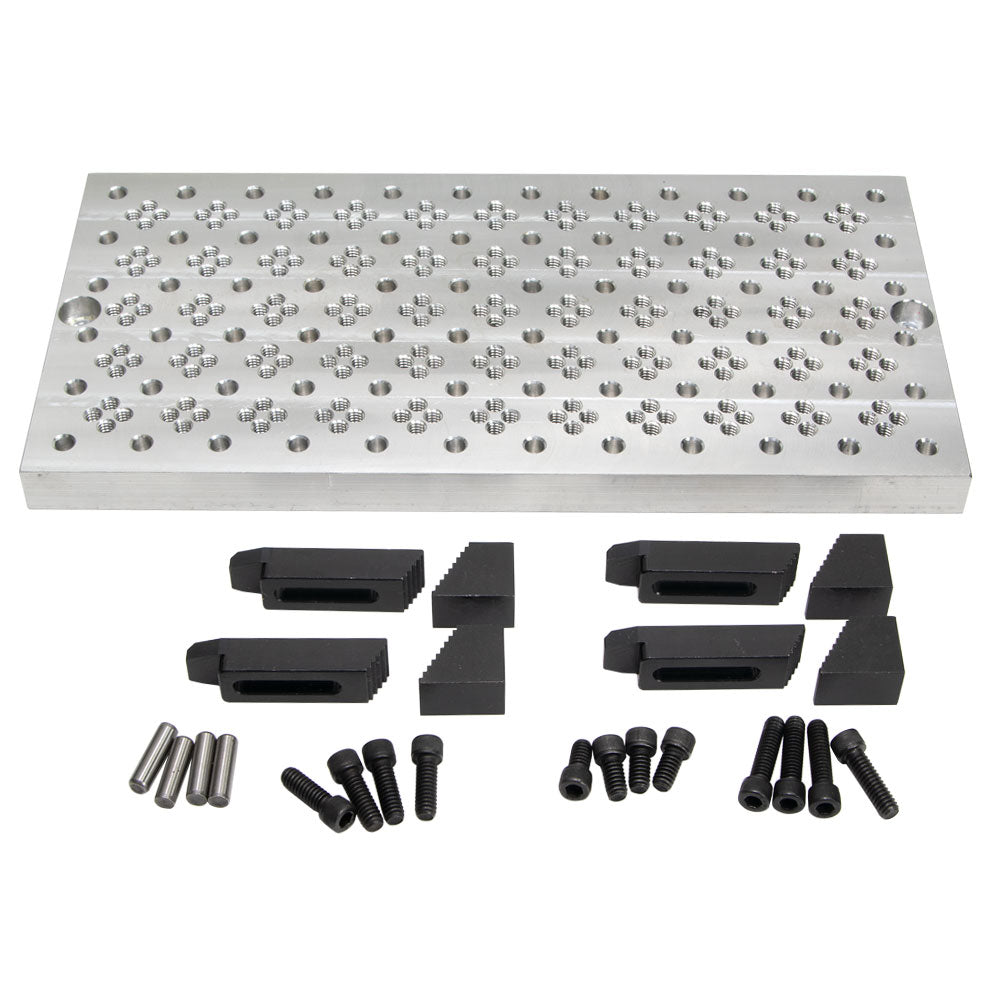

- 1 - Tooling plate, 6" x 12"

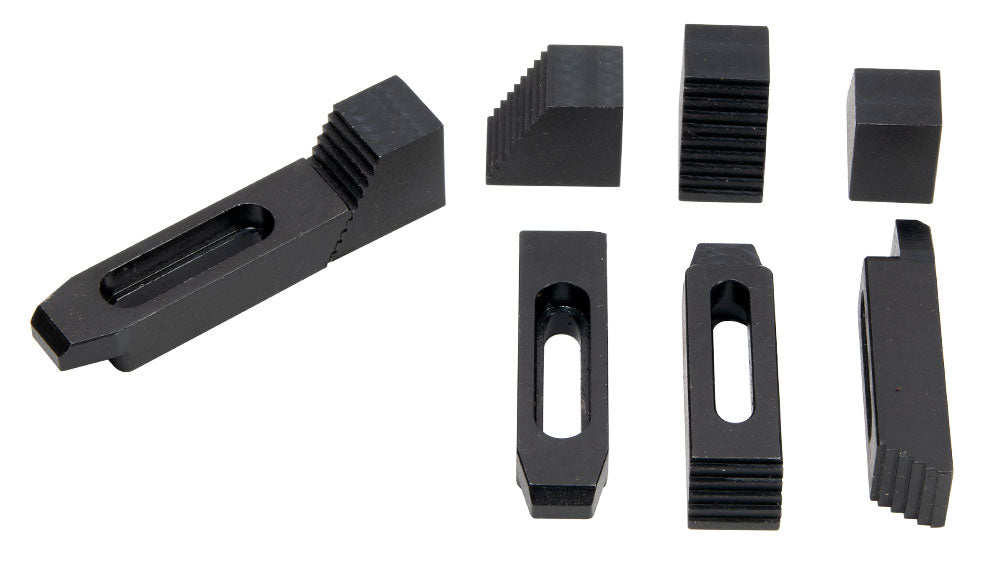

- 4 - Clamp bars 2-3/8" long
- 4 - Step blocks 1" tall
- 4 - 1/4" x 3/4" locating pins
- 4 - 1/4"-20 x 1/2" socket head cap screws
- 4 - 1/4"-20 x 3/4" socket head cap screws
- 4 - 1/4"-20 x 1" socket head cap screws
