Control Box Assembly, Mini Mill
- For all Mini Mills with conventional DC drives
- Saves complicated rewiring for updated controller board
- 120V 60 Hz input
Part Number: 4503
Weight: 3.15 lb
Weight: 3.15 lb
Price: $292.95
This product is currently backordered.
Estimated availability:
01-Dec-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.

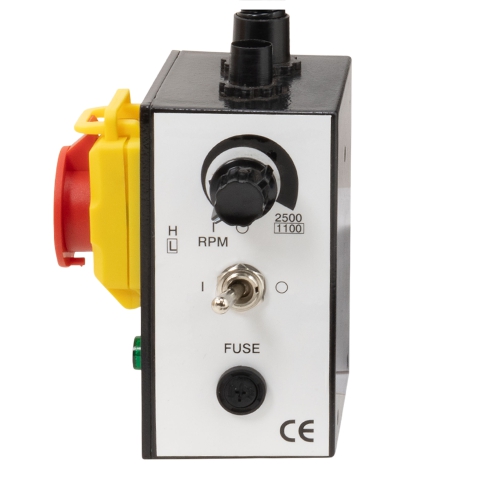

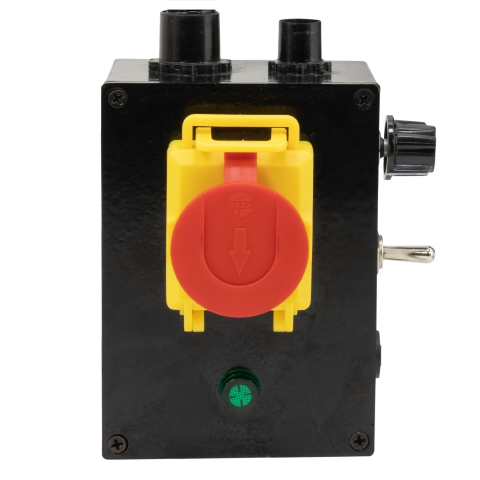

This control box assembly includes two plastic control boxes, the motor controller, the emergency stop switch, the I/O switch, the potentiometer, the fuse holder and fuse.
This is a fully-assembled control box set. Simply hook up the motor leads and go.

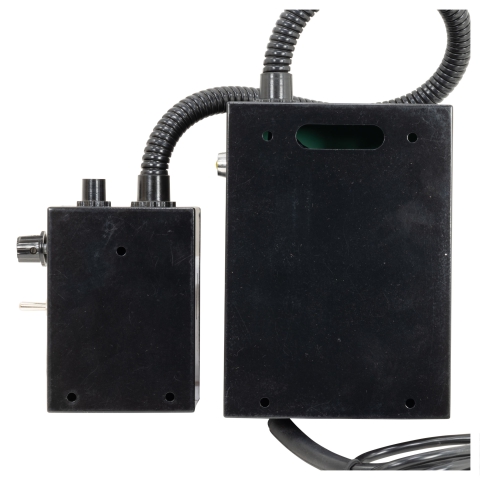

One box mounts on the back of the column, the other on the side of the head.
This package includes the current-production XMT-1135 motor controller.
For all 120V mini mills except those with brushless DC drives.
Chris' Tips
Pete Brush will repair mini lathe and mini mill control boards for a lot less than the cost of a replacement. You can contact him here.
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- King Canada KC-15VS King Industrial Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
In your instruction manual, this part appears on the parts list as:
