Belt, Timing Micro Mill

Belt, Timing Micro Mill

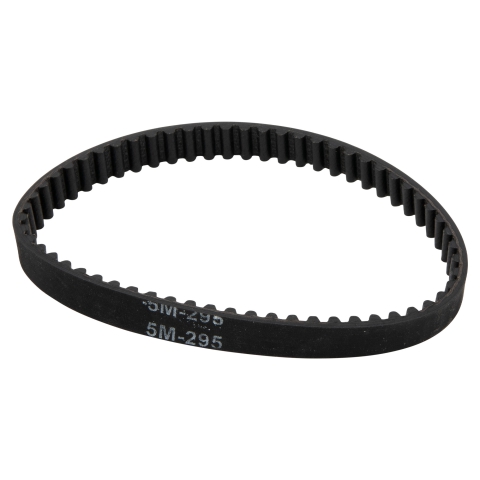

  • Timing belt - micro mill
  • Belt marked 5M-295
  • Fits HiTorque 4660 (ER-16) and 4700 (MT2) micro mills
  • Fits SIEG SX1P micro mills
Part Number: 4658
Weight: 0.03 lb

Price: $9.95

In stock
5M Closed-loop timing belt for the HiTorque micro mills 4660 (ER-16) and 4700 (MT2) and SIEG SX1P micro mills.

Width is 10mm (0.394")

Number of teeth: 59

Tooth pitch: 5mm (0.197")

Belt Height: 3.81mm (0.15")

Tooth Height: 2.08mm (0.082")

Material: Neoprene rubber with fiber glass core.

See Used On tab for reference to machines using this part and the corresponding drawing number.

In your instruction manual, this part appears on the parts list as:

Item No Models
117 4660 HiTorque Micro Mill 4700 HiTorque Micro Mill
Click your model to see the complete parts list.
