Chuck Stop, 3-Jaw, 3 Piece Set

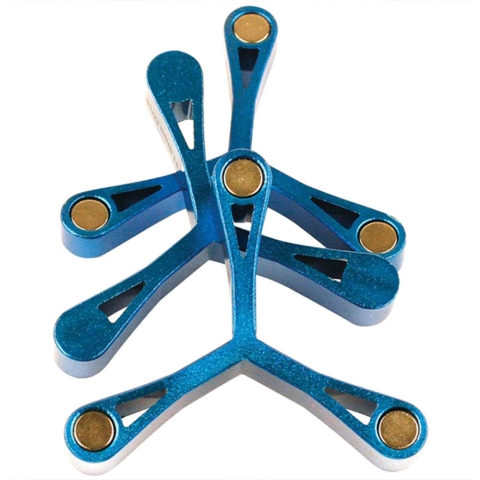

Set of three 3-Jaw Chuck Stops
Fits 3" to 5" 3-Jaw lathe chucks
Thicknesses include 8.5 mm, 11.5 mm, and 14.5 mm
Magnetic mounting on chuck face
Made from blue anodized aluminum

Part Number: 1382
Weight: 0.34 lb

Price: $124.99

Share this page:
http://lmscnc.com/1382

Description

The chuck stops mount magnetically to the face of any 3" to 5" 3-jaw lathe chuck.

The front and back surfaces are parallel within ±.002" (±0.05 mm).

The design allows short and small parts to project a consistent distance past the chuck jaws without falling inside the bore.

Chris' Tips

Chris' Tips
Using the magnets on the chuck stop, mount the stop flush to the face of the lathe chuck. Place the work piece against the chuck stop to control the depth in the lathe chuck. Close the chuck jaws to clamp the work piece.

Photos

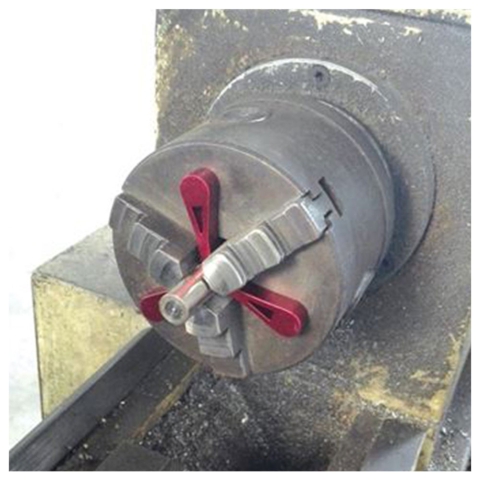

	Chuck Stop Mounted

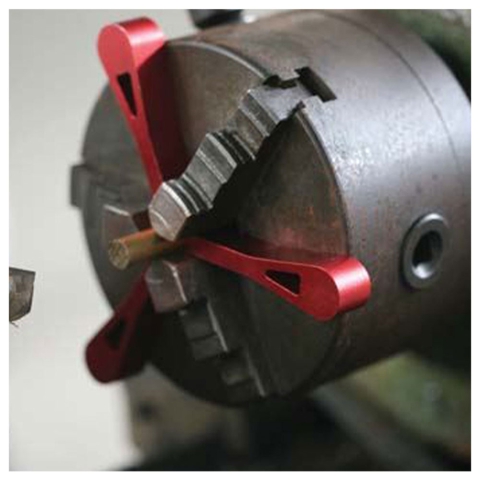

	Chuck Stop Mounted

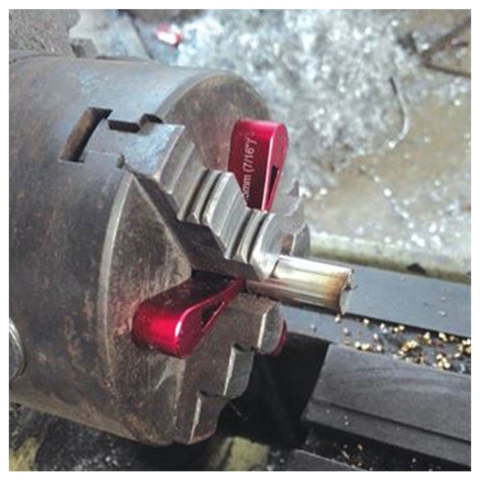

	Chuck Stop Mounted
