Tool Post Grinder, Bench Lathe
- For LittleMachineShop.com HiTorque 8.5x16 and 8.5x20 Bench Lathe
- For SIEG C4 and SC4 lathes
Part Number: 4670
Weight: 12.7 lb
Weight: 12.7 lb
Price: $195.01
Share this page:
http://lmscnc.com/4670
http://lmscnc.com/4670

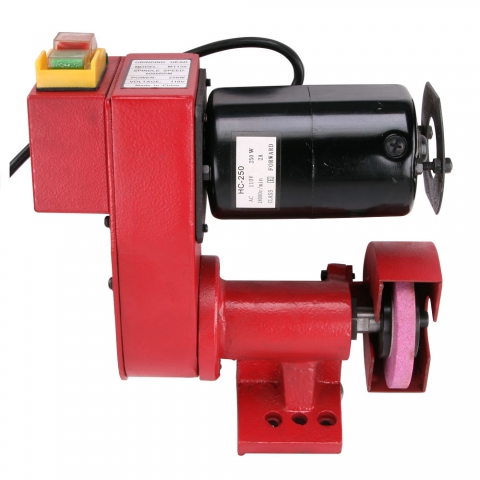

This tool post grinder includes a mounting bracket to fit the C4 and SC4 lathe. To install it, simply replace the compound rest. The bottom of the mounting foot is approximately 50 mm (2") below the center line of the grinding wheel.
With a powerful 150 watts, 120V, 60 Hz. motor, this grinder can handle even the toughest tasks with ease.
This tool post grinder operates at a speedy 6,000 rpm, ensuring efficient and accurate grinding every time. It comes with two grinding wheels - a 60 grit and 80 grit - as well as tools needed to change them.
The compact design measures only 8" tall, 9" long, and 3.5" thick, making it easy to store and transport.
 |
Accessories |
| Description | Qty | |
|---|---|---|
|
Mounting Block, Tool Post Grinder, Bench Lathe, P/N 4669 | 1 |
|
Tool Post Grinder, Mini Lathe, P/N 2001 | 1 |
Compatibility
This product works with these LittleMachineShop.com products:
- 2195 Arbor, Grinding Wheel
- 2584 Grinding Wheel, 120 Grit
- 2585 Grinding Wheel, 180 Grit
- 2586 Grinding Wheel, 240 Grit
- 2184 Grinding Wheel, 60 Grit
- 1767 Grinding Wheel, 80 Grit
- 2194 Poly-V Belt, Tool Post Grinder
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
