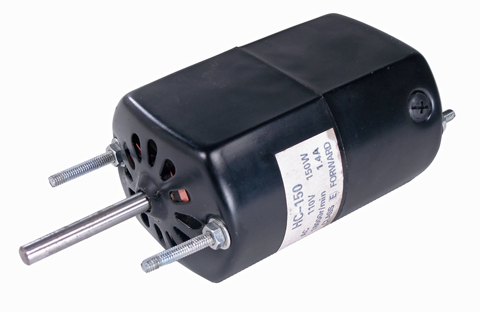

Motor, Nano Machines
- 110V AC 150 Watt motor draws 1.4A
- 18,000 RPM (nameplate, not tested)
- Turns clockwise when looking at end of shaft
Part Number: 4757
Weight: 1.66 lb
Weight: 1.66 lb
Price: $84.95
Share this page:
http://lmscnc.com/4757
http://lmscnc.com/4757
This is the drive motor for all the nano machines.
The tool post grinder motor is approximately 104 mm long and 65 mm in diameter. The shaft is 6 mm in diameter and about 41 mm long.
The mounting studs for this electric grinder motor are M4, 24 mm long and 53 mm center to center.
