- M8 x 1.25 pitch thread
- 30mm overall length

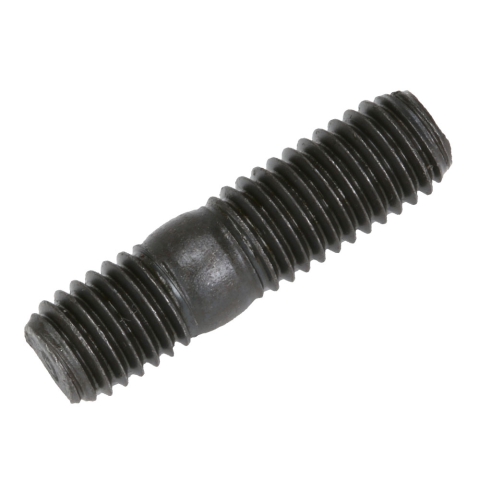

- M8 x 30 stud with black oxide finish
Weight: 0.02 lb
These studs are used to hold chucks on the Big Dog 7x14 lathe with 100 mm stock chuck.
Setup stud M8x30. Threaded on both ends with an un-threaded section in the middle for clamping.
See Used On tab for reference to machines using this part and the corresponding drawing number.
