Bearing, Angular Contact 7206-B

7206-B-TVP angular contact bearing
40 Degree angular contact
ID (Bore) 30 mm
OD 62 mm
Width 16 mm

Part Number: 4957
Weight: 0.50 lb

Price: $49.95

Share this page:
http://lmscnc.com/4957

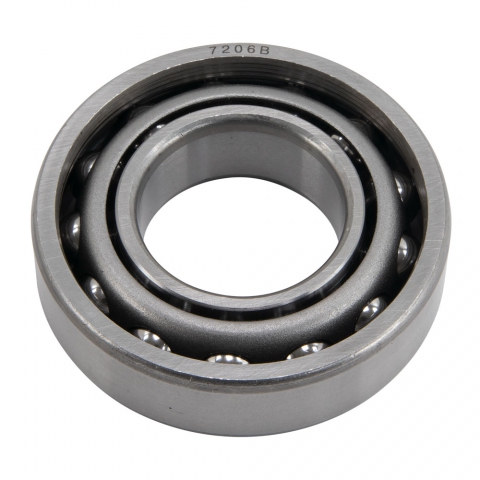

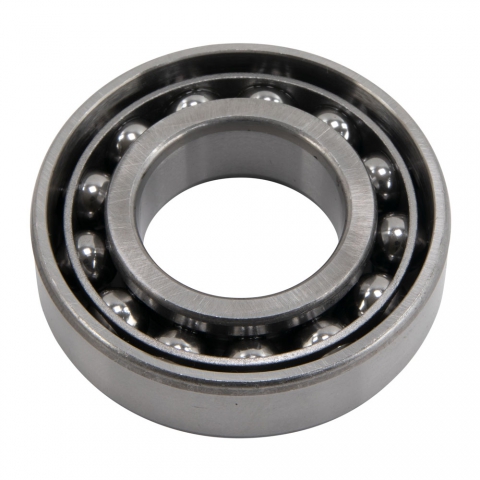

7206B-TVP angular contact ball bearing.

This is an angular ball bearing that can be used to replace the spindle bearings on the mini lathe. It requires two of these bearings to update a mini lathe spindle.

These 7206-B bearings are the same size as the stock bearings so you don't have to trim any spacers.

These are NSK, NTN, Nachi, or equivalent brand.

7206-B breaks down like this:

72 - Light Series

06 - 30 mm Bore Size

B - 40° Contact Angle

Photos

"Bearing

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
32	LittleMachineShop.com 6450 HiTorque Mini Mill

Click your model to see the complete parts list.
