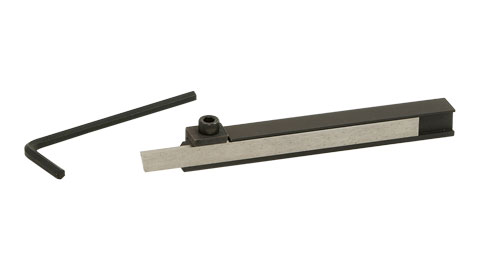

Grooving & Cut-Off Tool, 5/16" Shank, HSS Blade, A R Warner Kit #27

For external grooving and cut-off operations
Includes one 5/16" shank holder 3" overall length
Includes one .062" cut-off blade T-15 high speed steel
Blade is 7/32" (0.218") tall and 3" long
Includes one 7/64" Allen wrench

Part Number: 5106
Weight: 0.49 lb

Price: $109.95

Share this page:
http://lmscnc.com/5106

Description

This grooving & cut-off tool works in the standard 4-way tool post on the mini lathe.

The blade is 7/32" (0.218") tall and 3" long.

Made in the US by the Arthur R. Warner Co.

The Arthur R. Warner Co. is a family-owned American manufacturer of high speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high speed steel. Their quality is excellent and LittleMachineShop.com is proud to carry their products.

Chris' Tips

Chris' Tips

ABOUT A.R. WARNER

The Arthur R. Warner Co. is a family-owned American manufacturer of high-speed steel products with specialization in cutting, shaping, pre-grinding, heat treating, and finish grinding of premium grades of flat high-speed steel (and tool steel).

Our Indexable Turning Tool Set was first introduced in July of 1998. Since the introduction, we have expanded our sizes of Turning Tool Sets, introduced 2 sizes of Indexable Boring Bar Kits, a Profiling Kit and a Threading Kit with the appreciated input from numerous Home Shop Machinists.Our latest kits, designed for grooving, have been very well received in both hobbiest and manufacturing markets.

Our kits contain T-15 HSS throw-away inserts. Most machinists are familiar with "Steel" toolbits and Carbide inserts, and now they can achieve the convenience of indexability while using a cutting material which is typically better suited for their smaller lathes and milling machines. Overall, we consider T-15 HSS to be the best grade of readily available HSS for wear resistance, toughness, and hot hardness.

Use T-15 HSS for:

Interrupted Cuts
Underpowered Spindles
Gummy material like stainless, aluminum, and brass
Less than rigid setups

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Here's a video that talks about high speed steel tooling.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:
