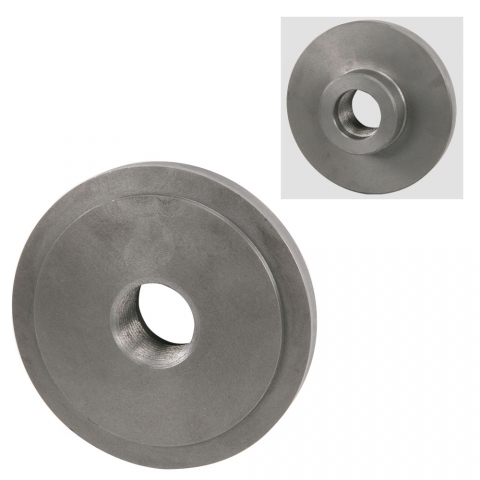

Chuck Adapter, 1-3/4"-8 Thread 6" Diameter

Cast iron lathe chuck backplate adapter fits lathes with 1-3/4"-8 spindle nose thread
Adapter is 6" (160 mm) in diameter and has no chuck mounting holes
Adapter can be used for any 6", 5" or 4" lathe chuck
Includes instructions for final turning of the registration diameter to insure concentricity.

Part Number: 5126
Weight: 6.65 lb

Price: $52.95

This product is currently backordered.

Estimated availability:
16-Feb-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/5126

Description

*NOTE* These adapters require machining on the lathe on which they will be used.

Instructions are included for final turning of the registration diameter on your lathe to insure perfect concentricity.

This adapter fits the Grizzly G0602 lathe.

Chris' Tips

Chris' Tips
Too many adapters? See our chart that correlates lathe spindle threads to lathe chuck adapters and our chart that provides dimensions of threaded lathe chuck adapters.

These adapters must be machined on your lathe to fit the chuck so that it is concentric on the lathe. In most cases you have to drill the chuck mounting holes also.

We provide complete instructions for mounting the adapter. Our transfer screw sets are the perfect tool for marking the chuck mounting holes on a lathe chuck adapter.

WOODWORKERS: Our threaded adapters are not suitable for use on wood turning lathes. Please do not purchase them for this application. These adapters require machining on the lathe on which they will be used, and this is impossible on a wood lathe.

Compatibility

Compatibility

This product works with lathes with a 10 inch swing including:

SIEG C6 10x21 Lathe
Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
Grizzly G0516 10x21 Lathe Mill Combo
Prazi SD500 10x20 Lathe
SIEG M6 10x21 Lathe Mill Combo
