Large Table Solid Column Conversion Kit, Mini Mill

Large Table Solid Column Conversion Kit, Mini Mill
  • Converts a tilting column mini mill to the large table solid column version
  • 30% more travel in both directions
  • 50% more table area
  • Solid column is significantly more rigid
Part Number: 5177
Weight: 105 lb

Price: $599.95

In stock
Quantity:

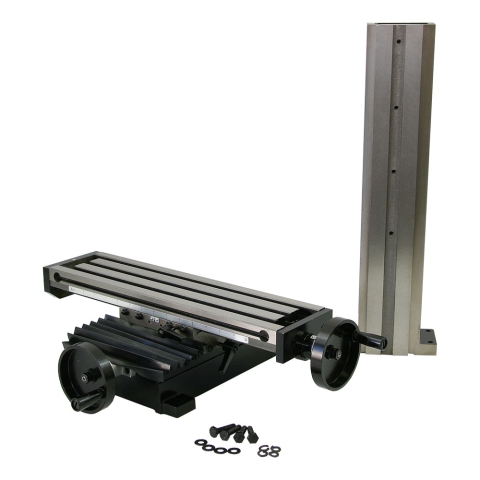

This kit converts a tilting column mini mill to a large table with a solid column.

The kit includes the X-Y table and column from the HiTorque Solid Column Mini Mill (part number 3990), the fasteners needed to connect them.

This kit contains a complete X-Y table assembly for a mini mill.

The table is 120 mm (4.73") by 460 mm (18.11"). It has three 12 mm T-slots.

The X-axis travel is 300 mm (11.8") and the Y-axis travel is 130 mm (5.1").

The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.050".

The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   BusyBee CX605 Craftex Mini Mill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Eastwood 32498 Mini Mill
  •   Harbor Freight 44991 Central Machinery Mill/Drill
  •   Homier 03947 Speedway Mini Mill
  •   King Canada KC-15VS King Industrial Mini Mill
  •   Northern Tool 49657 KLUTCH Mini Mill
  •   Penn Tool Co XJ-9510-1 Precise Mini Mill
  •   SIEG X2-R8 Mini Mill
  •   Travers Tools OT2213 OTMT Mini Mill
  •   SIEG X2P Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2D Mini Mill
  •   SIEG X2L Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   SIEG X2LF Mini Mill
  •   BusyBee CX612 Craftex Mini Mill
  •   SIEG SX2 Mini Mill
  •   Micro-Mark 84630 MicroLux Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
