Quick Change Tool Post Set, 0XA, Mini Lathe, Horizontal Cut-Off

Quick change tool post set for lathes with up to 8" swing
0XA, or series 000 size (60% of AXA size)
Includes five steel tool holders
Horizontal Cut-off tool holder
Fits all 7x10 to 7x16 mini lathes

Part Number: 3112
Weight: 4.43 lb

Price: $152.95

Share this page:
http://lmscnc.com/3112

Description

Wedge type 0XA quick change tool post set.

This quick change tool post set is designed for lathes with up to 8" swing.

It is the perfect size for mini lathes. The tool holders have been designed specifically to work on the mini lathes and other lathes that have limited distance from the top of the compound to the center of the lathe. This tool post mounts with an M10 stud, which is included.

This quick change tool post requires 5/8" from the top of the compound rest to the center of the lathe.

All working parts are hardened and ground steel. It is completely sealed for maintenance-free operation.

This tool post mounts with an M10 stud.

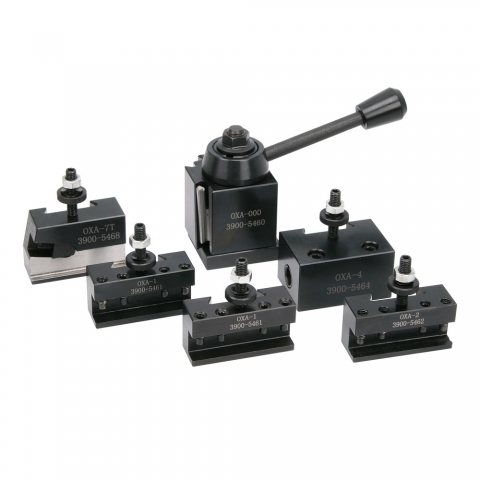

This set includes the tool post and the following tool holders:

(Tools hold up to 1/2" square shanks.)

2 - #1 Turning & Facing

1 - #2 Boring, Turning & Facing

1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars

1 - #7 Universal Parting Blade (for 1/2" cut-off blade - horizontal)

Chris' Tips

Chris' Tips
This QCTP is a bolt-on accessory for the mini lathe.

To mount this QCTP on other small lathes, you may have to make a bushing or re-work the center stud so that you can mount it to a smaller threaded hole

See the comparison chart of the quick change tool post sets we carry.

The 0XA quick change tool post and the associated tool holders were developed by Tormach and LittleMachineShop.com in cooperation.

The 0XA tool post and tool holders were optimized to work with all versions of mini lathes, including 7x10, 7x12, 7x14 and 7x16 mini lathes.

The two 0XA tool posts (3112 and 3048) are the same except for the cut-off tool holder.

The 3112 has a cut-off tool holder that mounts the blade horizontally. Thus it can be used on lathes that have only 5/8” from the top of the compound to the centerline of the lathe, like the 7x mini lathes.

The 3048 has a cut-off tool holder that mounts the blade at a 4 degree angle. It needs ¾” from the top of the compound to the centerline because of the angled cut off blade.

Here are instructions for mounting the 0XA QCTP on various lathes.

Photos

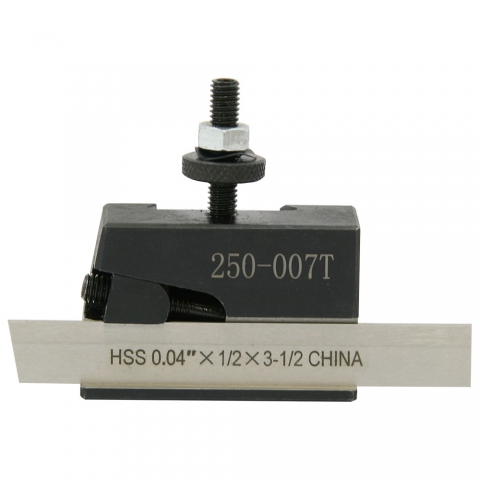

View of Cut-Off Tool Holder, 0XA, with half inch cut-off blade

Universal Parting Blade Tool Holder showing pitch of cut-off blade.

Contents

This product contains the following items:
	Description	Qty
	Quick Change Boring Tool Holder, 0XA, P/N 3116	1
	Quick Change Cut-Off Tool Holder, 0XA, P/N 3117	1
	Quick Change Tool Post, 0XA, P/N 3113	1
	Quick Change Turning & Boring Tool Holder, 0XA, P/N 3115	1
	Quick Change Turning & Facing Tool Holder, 0XA, P/N 3114	2

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Craftsman & Atlas 612 6x18 Lathe
Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Warco 4820-350 7x14 Mini Lathe (Metric)
Warco 4800-350 7x14 Mini Lathe (Imperial)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
194	LittleMachineshop.com 5200 HiTorque Mini Lathe - 7x16 LittleMachineShop.com 7350 HiTorque Mini Lathe - 7x16
401	LittleMachineShop.com 3595 HiTorque Bench Lathe - 8.5x20 LittleMachineShop.com 7550 HiTorque Bench Lathe - 8.5x20

Click your model to see the complete parts list.
