Quick Change Tool Post Set, 0XA, Mini Lathe, 4-Degree Cut-Off Premium

Quick Change Tool Post Set, 0XA, Mini Lathe, 4-Degree Cut-Off Premium

3048

$219.95 USD
$219.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Quick change tool post set for lathes with up to 9" swing
  • 60% of AXA, or series 100 size wedge type QCTP
  • This lathe quick change pool post set includes a 4-Degree Cut-off tool holder
  • Includes five tool holders
  • All steel construction

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This is a true wedge type quick change tool post set that is an exact 6/10 scale copy of the AXA, or series 100 wedge type quick change tool post.

This quick change tool post set is designed for lathes with up to 9" swing. It requires 3/4" from the top of the compound rest to the center of the lathe.

It will hold turning tools with shanks from 1/4" to 1/2". The boring bar holder will hold 3/8" and 1/2" boring bars. It will hold 1/2" tall cut-off blades.

All working parts are hardened and ground. It is completely sealed for maintenance-free operation.

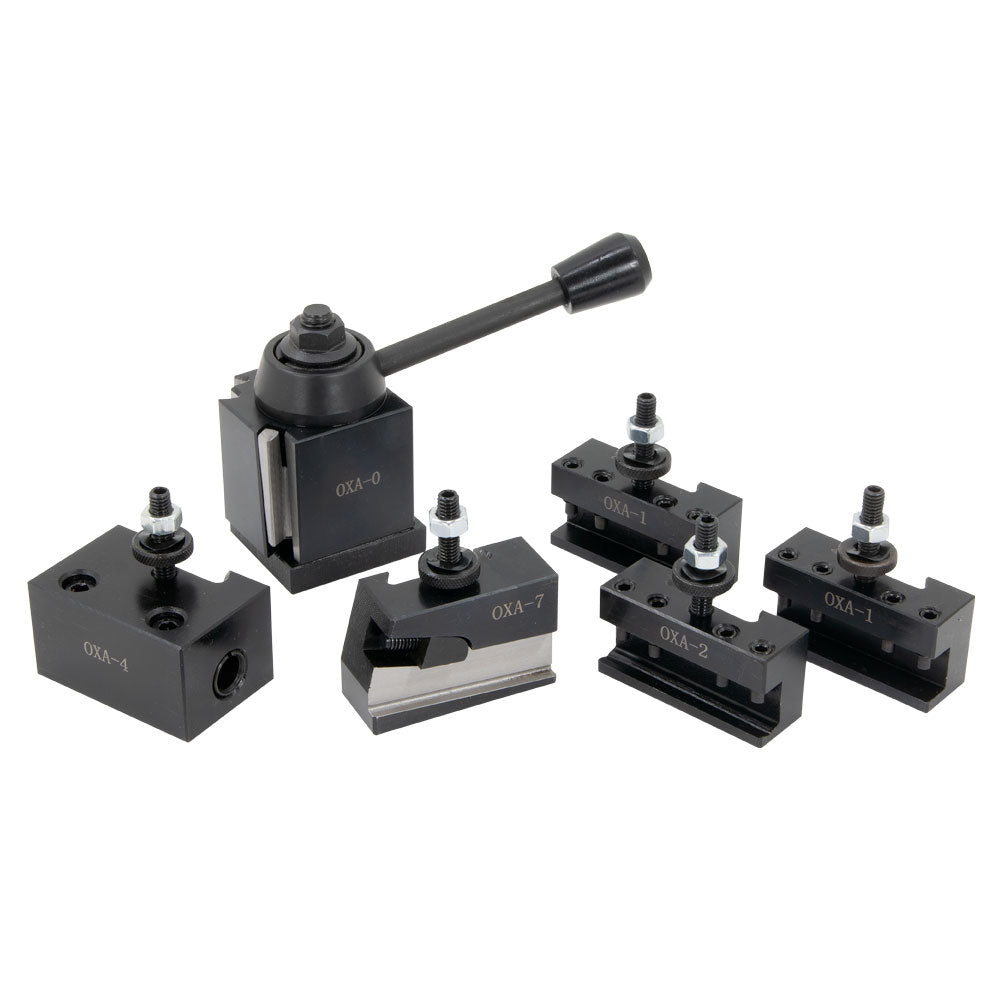

This set includes the tool post and the following tool holders:

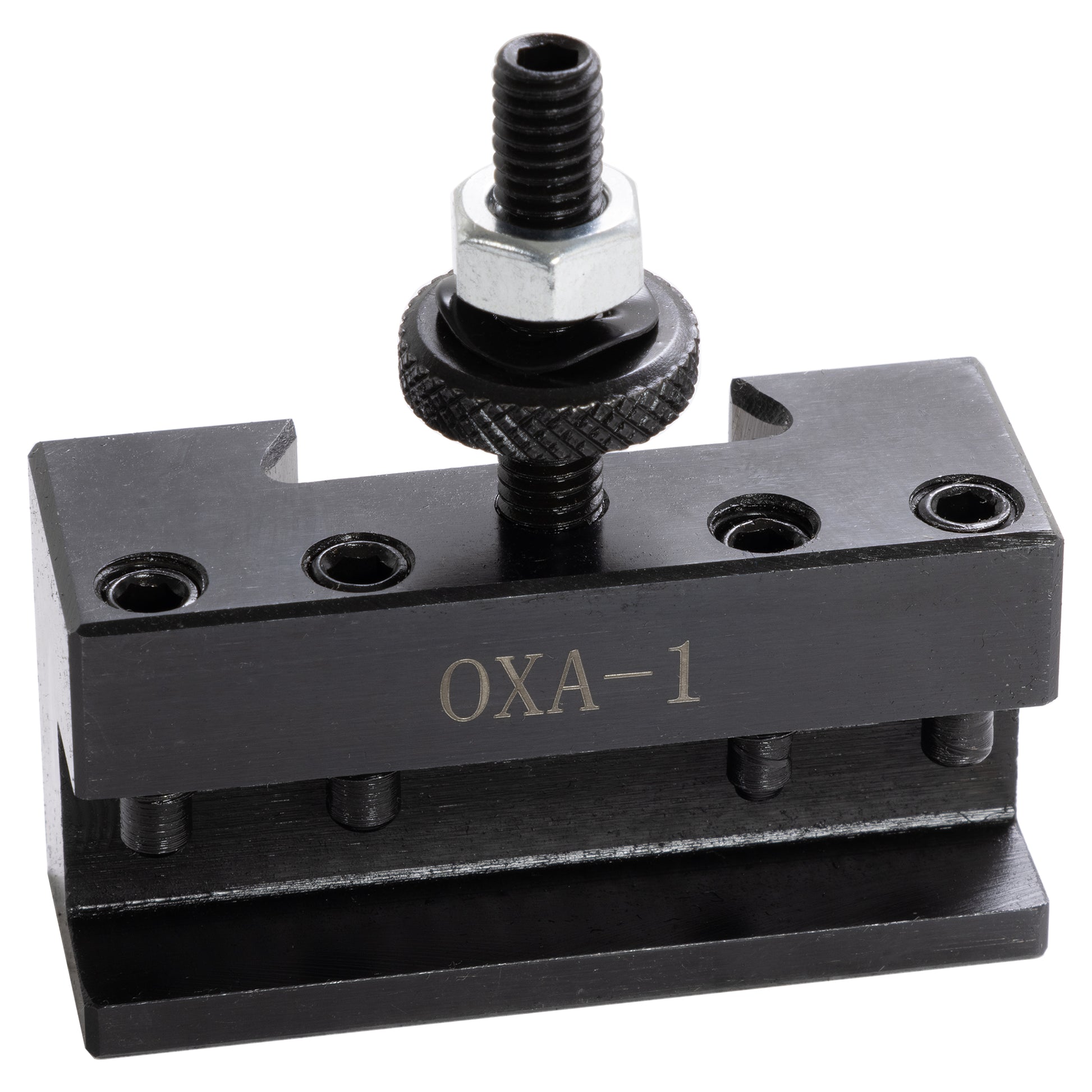

2 - #1 Turning & Facing

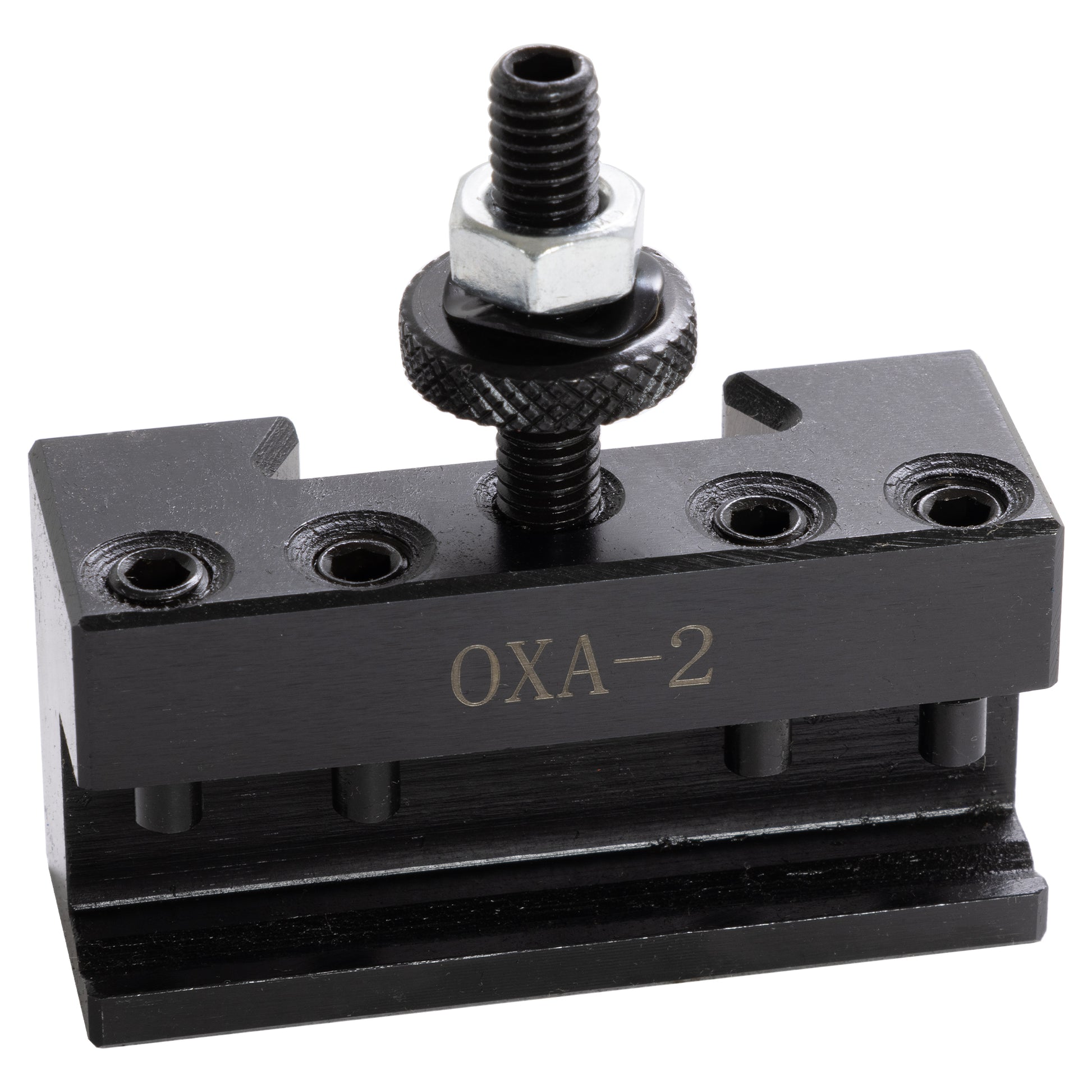

1 - #2 Boring, Turning & Facing

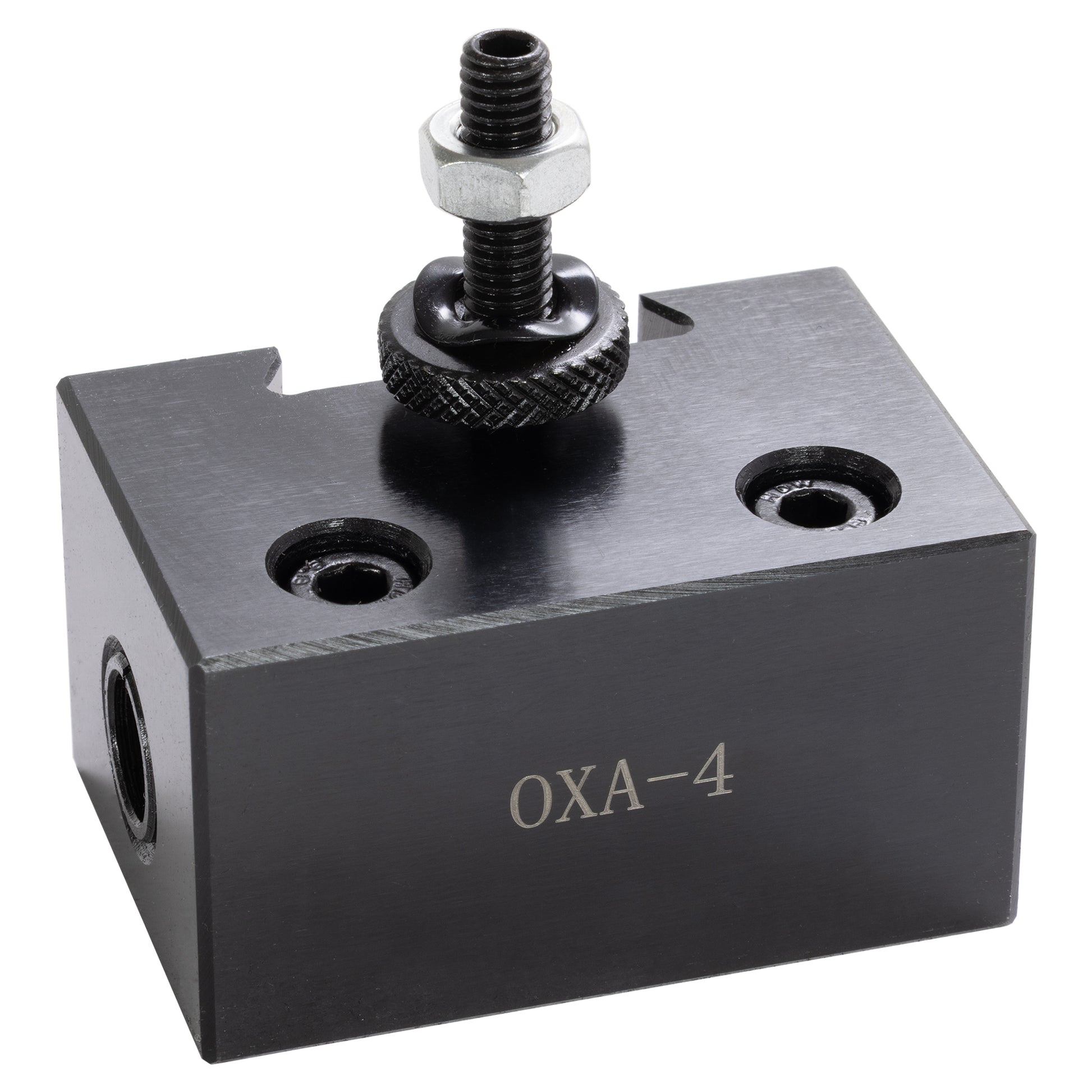

1 - #4 Heavy Duty Boring will hold both 3/8 and 1/2 boring bars

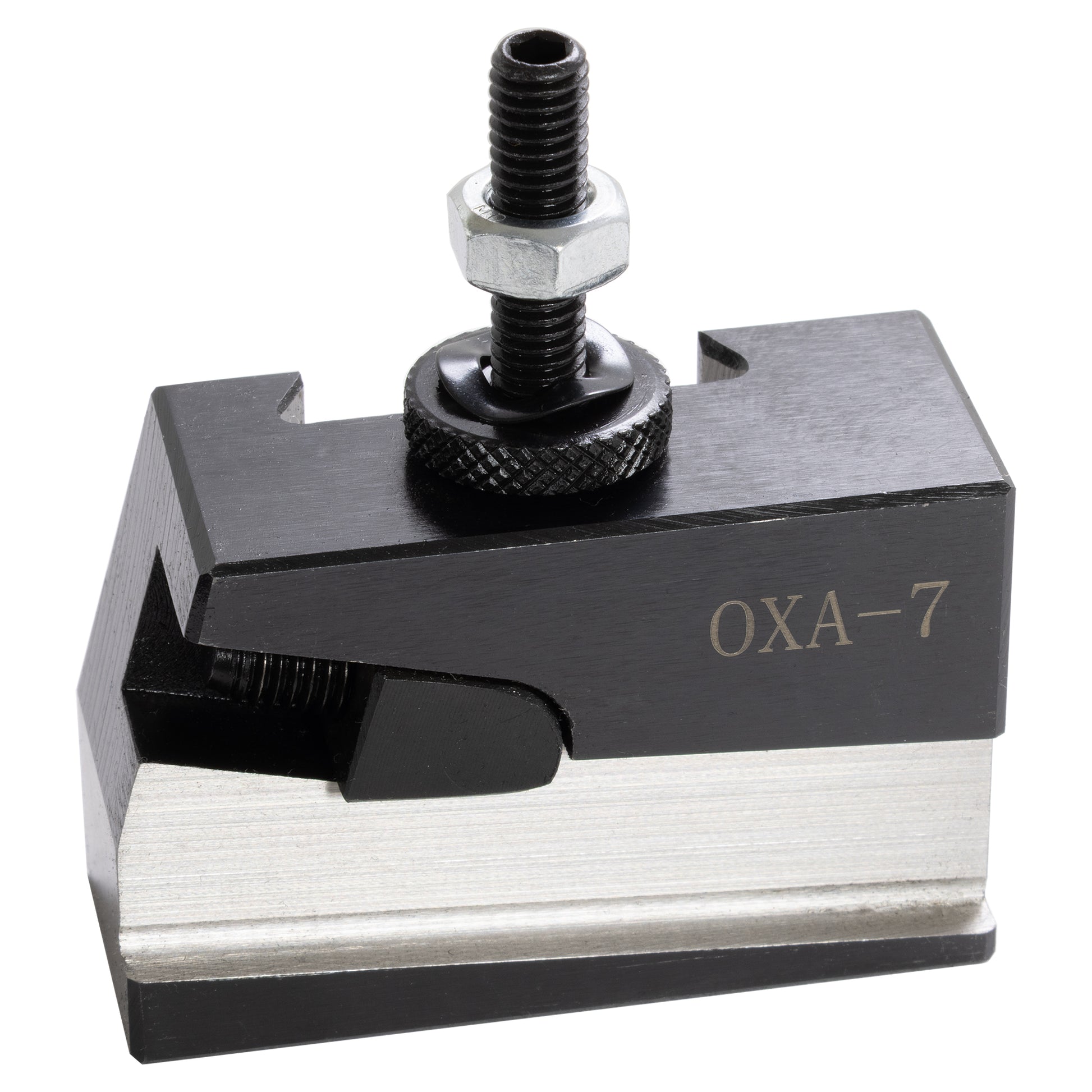

1 - #7 Universal Parting Blade (for 1/2 inch cut-off blade - 4-degree)

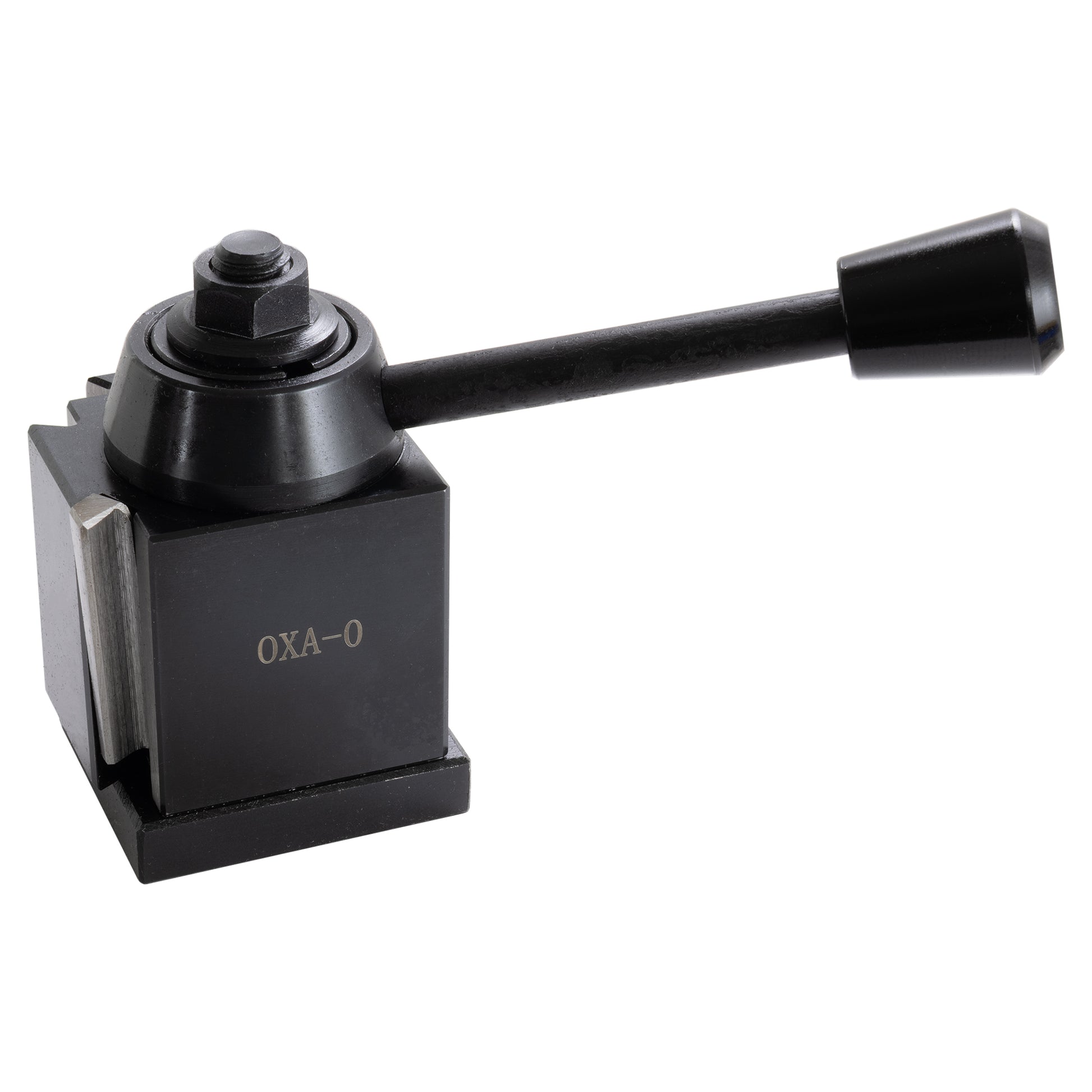

This tool post mounts with an M10 stud that is included. It also includes a piece of steel from which you can make a T-slot nut to fit your lathe.

Chris's Tips

The 0XA quick change tool post and the associated tool holders were developed by Tormach and LittleMachineShop.com in cooperation. They were optimized to work with all versions of mini lathes, including 7x10, 7x12, 7x14 and 7x16 mini lathes.

This QCTP is a bolt-on accessory for the mini lathe. To mount this QCTP on other small lathes, you may have to make a bushing or re-work the center stud so that you can mount it to a smaller threaded hole. See the comparison chart of the quick-change tool post sets we carry.

The two 0XA tool posts (3112 and 3048) are the same except for the cut-off tool holder.

The 3112 has a cut-off tool holder that mounts the blade horizontally. Thus, it can be used on lathes that have only 5/8” from the top of the compound to the centerline of the lathe, like the 7x mini lathes.

The 3048 has a cut-off tool holder that mounts the blade at a 4-degree angle. It needs ¾” from the top of the compound to the centerline because of the angled cut off blade.

Here's a video that shows how to mount this QCTP on a Grizzly G0768 8x20 lathe.

See the comparison chart of the quick-change tool post sets we carry.
