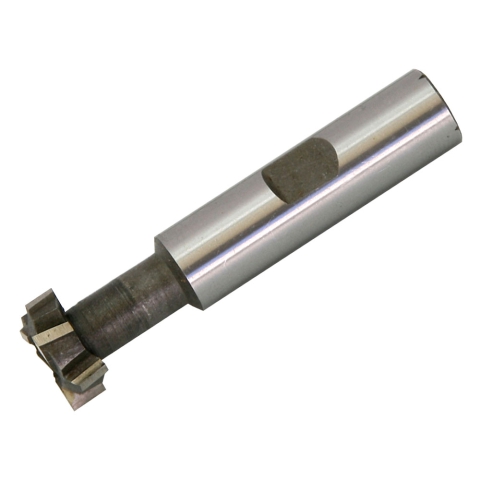

T-Slot Cutter, 3/8" T-slot, HSS
- For 3/8" T-slots (measured at the top of the T-slot)
- Cutting diameter 25/32", cutting width 21/64"
- Neck diameter 13/32", shank diameter 3/4", bolt size 3/8"
- Undercut length 3/4", OAL 3-1/4", 6 teeth
- Positive radial rake, right and left-hand spiral
Part Number: 5195
Weight: 0.17 lb
Weight: 0.17 lb
Price: $24.95
Share this page:
https://littlemachineshop.com/5195
https://littlemachineshop.com/5195
T-slot cutting tools are designed to make T-slots in tables and beds.
Two milling cutters are required for milling T-slots, an end mill and a T-slot cutter. A 3/8" vertical slot is milled into the piece so that the neck and shank of the T-slot cutter can enter.
Our high speed steel 3/8" T-slot cutters have positive radial rake, right and left hand spiral with alternate side cutting teeth for maximum chip clearance.
| T-Slot Width | 0.375" (9.52 mm) |
| Cutting Diameter | 0.656" (16.67 mm) |
| Cutter Width (Depth) | 0.266" (6.75 mm) |
| Bolt Size | 5/16" |
| Neck Diameter | 0.328" (8.33 mm) |
| Shank Diameter | 0.50" (12.7 mm) |
| Undercut Length | 0.609" (15.48 mm) |
| Overall Length | 2.6875" (68.263 mm) |
