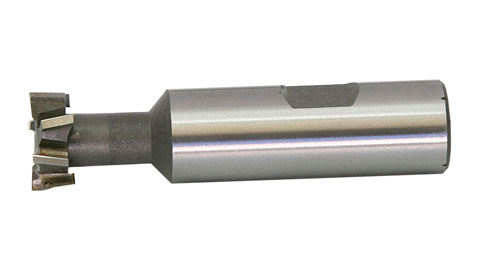

7/16" HSS T-Slot Cutter | T-Slot Milling Cutter | LittleMachineShop.com (Discontinued)
- For 7/16" or 12 mm T-slots (measured at the top of the T-slot)
- Cutting diameter 25/32", cutting width 17/64"
- Neck diameter 21/64", shank diameter 1/2", Bolt Size 3/8"
- Undercut length 39/64", OAL 2-11/16", 8 teeth
- Positive radial rake, right and left-hand spiral
Part Number: 5196 (Discontinued)
Weight: 0.37 lb
Weight: 0.37 lb
Price: $28.95
Share this page:
http://lmscnc.com/5196
http://lmscnc.com/5196
T-Slot Cutters are designed to cut T-slots in tables and beds.
Two milling cutters are required for milling T-slots, an end mill and a T-slot cutter. A 7/16" or 12 mm vertical slot is milled into the piece so that the neck and shank of the T-slot cutter can enter.
Our High Speed Steel T-slot cutters have positive radial rake, right and left hand spiral with alternate side cutting teeth for maximum chip clearance.
| T-Slot Width | 0.4375" (11.112 mm) |
| Cutting Diameter | 0.781" (19.84 mm) |
| Cutter Width (Depth) | 0.266" (6.75 mm) |
| Bolt Size | 3/8" |
| Neck Diameter | 0.328" (8.33 mm) |
| Shank Diameter | 0.50" (12.7 mm) |
| Undercut Length | 0.609" (15.48 mm) |
| Overall Length | 2.6875" (68.263 mm) |
