Boring Bars, Indexable, 80 Deg Diamond Inserts, 3 Piece
- 3 piece set, 5/16", 3/8" and 1/2" diameter
- Uses CCMT 80 degree diamond inserts
- 7 degree relief angle, negative 5 degree lead angle for boring
- 3 degree side and end cutting edge angle
- Torx wrench and CCMT inserts included
Boring bars for semi-finishing and finishing operations.
The 5/16" diameter bar is 4" long, designation S05H-SCLCR2.
The 3/8" diameter bar is 6" long, designation S06M-SCLCR2.
The 1/2" diameter bar is 7.75" long, designation S08R-SCLCR2.
Chris' Tips
Make sure you get the correct inserts and retaining screws for your indexable turning tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

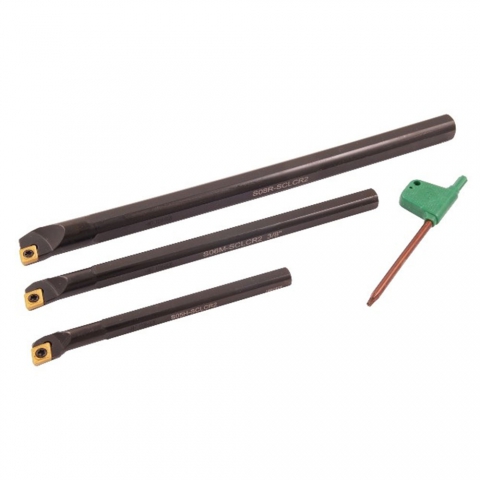

Set contents | |

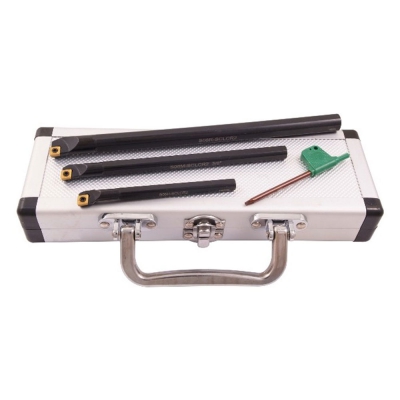

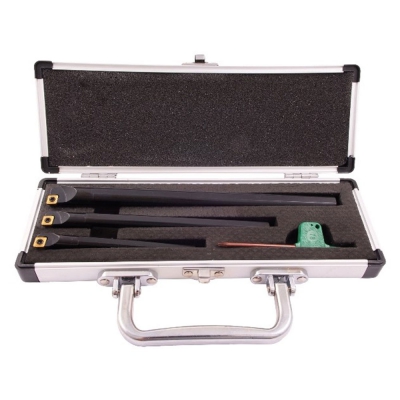

Set fitted in case | |

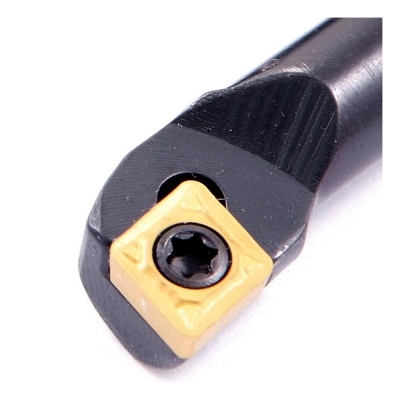

Diamond insert | |

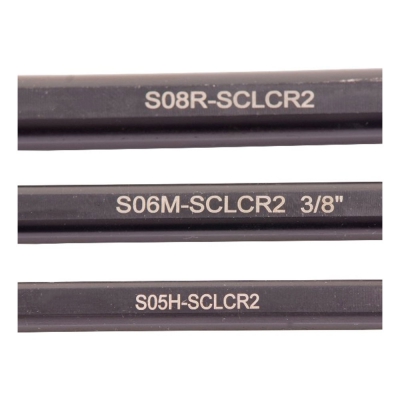

Boring bar size designations | |

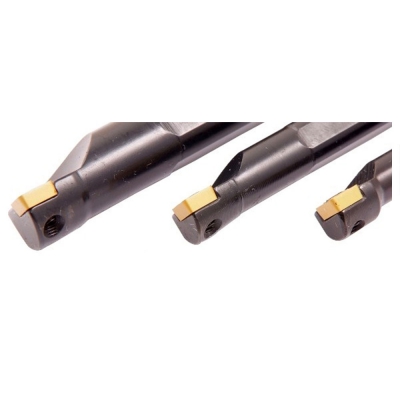

Inserts alternate view |
Compatibility
This product works with these LittleMachineShop.com products:
- 1781 Insert, CCMT-21.51 Carbide
- 3696 Insert, CCMW-21.51 HSS
- 4975 Insert, CEMW-21.5.5 HSS
- 2696 Screw, Insert Retaining, M2.5x6
- 5551 Torx Wrench, T-8
- 4843 Torx Wrench, T-8, Wiha
