Digital Position Readout, 2-Axis Bluetooth for Mini Lathe

Fits standard mini lathes, 7x10 to 7x16
Displays on any Android tablet with Bluetooth capability
Resolution of 0.0002" (0.005 mm)
100-240 VAC power supply
Coolant and dust resistant (IP50)

Part Number: 5495
Weight: 2.94 lb

Price: $399.95

Share this page:
http://lmscnc.com/5495

This magnetic technology digital readout package fits all mini lathes from 7x10 to 7x16. Simply cut the long scale to fit.

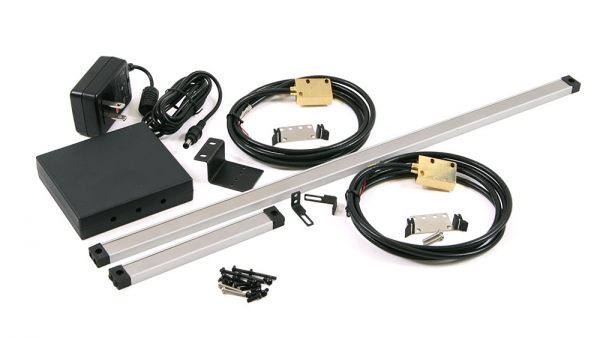

This package includes what you need to put a DRO on most any mini lathe. It includes a two scales, two read heads, and a Bluetooth transceiver and all the mounting brackets and hardware.

You must also get an Android tablet for the display on this DRO. We recommend a 7" screen size, and the tablet must have Bluetooth capability. The specifications shown here show the capabilities of the software included with our Android tablet (PN 5513, available separately) and TouchDRO, and app you can download and install on your own tablet.

Chris' Tips

Chris' Tips
Here are instructions for mounting the DRO on a mini lathe.

While we sell an Android Tablet with the DRO software installed, you can use most any Android tablet that supports Bluetooth with the Bluetooth DROs that we sell.

Here's how to get going:

On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
Go to the Google Play Store and install Yuriy's Toys TouchDRO.
When you launch TouchDRO and tap Connect in the upper right corner.

Specifications

Specifications
Repeatability	0.0002" (0.005 mm)
Resolution	0.0002" (0.005 mm)
Specified Accuracy	0.0020" (0.050 mm) / 1 m travel
Accuracy / Foot	0.0020" (0.050 mm)
Accuracy / 100 Mm	0.0020" (0.050 mm)
Scales Cut to Length by User	Yes
Scale Technology	Magnetic
Scale Protection	Coolant & dust resistant
Voltage	100-240 V
Clear to Zero	Yes
Direct Entry of Position	Yes
Inch/mm Display	Yes
Power Off Memory	No
Reversible Count Direction	Yes
Find Center	Yes
Bolt Circles	Yes
Bolt Lines	Yes
Preset Points	Yes
Tool Offsets	Yes
Radius/Diameter	Yes
Incremental/Absolute	Yes
Calculator	No
Arc Machining	No
Linear Error Compensation	No
Made In	China
Warranty	1 year
Phone Tech Support	Free

Photos

Screenshots of 2-Axis Mini Lathe Digital Position Readout

	Read head detail
	Typical mounting of read head
	Read head in mounting bracket
	Close-up mounting end of scale

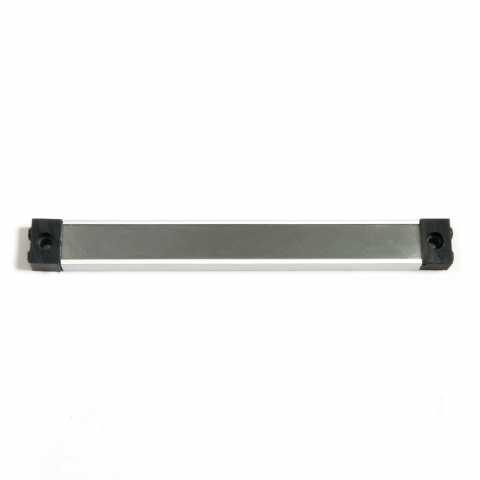

	Close-up short scale
	Close-up short scale in brackets
	Close-up end of scale with bracket attached

Compatibility

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
