Digital Position Readout, 3-Axis Bluetooth for HiTorque Mini Mill
- Fits large-table solid column mini mills
- Displays on any Android tablet with Bluetooth technology
- Resolution of 0.0002" (0.005 mm)
- 120 -240 VAC Power supply
- Coolant and dust resistant (IP50)
Part Number: 5514
Weight: 4.40 lb
Weight: 4.40 lb
Price: $499.95
Share this page:
http://lmscnc.com/5514
http://lmscnc.com/5514
This magnetic technology digital readout package fits large-table, solid column mini mills including the HiTorque Mini Mill and the SIEG X2D.

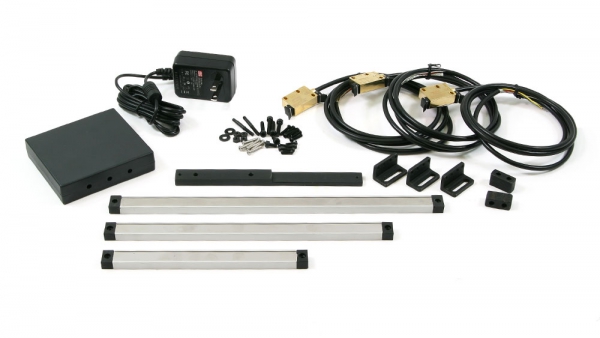

This package includes what you need to put a DRO on most mini mills. It includes a three scales, three read heads, a Bluetooth transceiver and all the mounting brackets and hardware.
You must also get an Android tablet for the display on this DRO. We recommend a 7" screen size, and the tablet must have Bluetooth capability.
Chris' Tips- On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
- Go to the Google Play Store and install Yuriy's Toys TouchDRO.
- When you launch TouchDRO and tap Connect in the upper right corner.
| Repeatability | 0.0002" (0.005 mm) |
| Resolution | 0.0002" (0.005 mm) |
| Specified Accuracy | 0.0020" (0.050 mm) / 1 m travel |
| Accuracy / Foot | 0.0020" (0.050 mm) |
| Accuracy / 100 Mm | 0.0020" (0.050 mm) |
| Scales Cut to Length by User | Yes |
| Scale Technology | Magnetic |
| Scale Protection | Coolant & dust resistant |
| Voltage | 100-240 V |
| Clear to Zero | Yes |
| Direct Entry of Position | Yes |
| Inch/mm Display | Yes |
| Power Off Memory | No |
| Reversible Count Direction | Yes |
| Find Center | Yes |
| Bolt Circles | Yes |
| Bolt Lines | Yes |
| Preset Points | Yes |
| Tool Offsets | Yes |
| Radius/Diameter | Yes |
| Incremental/Absolute | Yes |
| Calculator | No |
| Arc Machining | No |
| Linear Error Compensation | No |
| Made In | China |
| Warranty | 1 year |
Screenshots of 3-Axis HiTorque Solid Column Mini Mill Digital Position Readout
 |
Read head detail |
 |
Read head in mounting bracket |
 |
Typical mounting of read head |
 |
Mounting end of scale |
 |
Close-up short scale in brackets |
 |
Detail of scale end with bracket attached |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2LF Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- LittleMachineShop.com 6450 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
