Stand Cabinet, 7x14 Mini Lathe

Stand Cabinet, 7x14 Mini Lathe
  • Metal and chip tray stand for mini lathe
  • Single column two door design
  • 28.8" x 13.9" x 35.3" (732 mm x 352 mm x 896 mm)
  • Cabinet for storage with locking door
  • Fits SIEG C3 7x14 mini lathes
Part Number: 5625
Weight: 87.2 lb

Price: $299.95

In stock
Quantity:


PayPal Credit

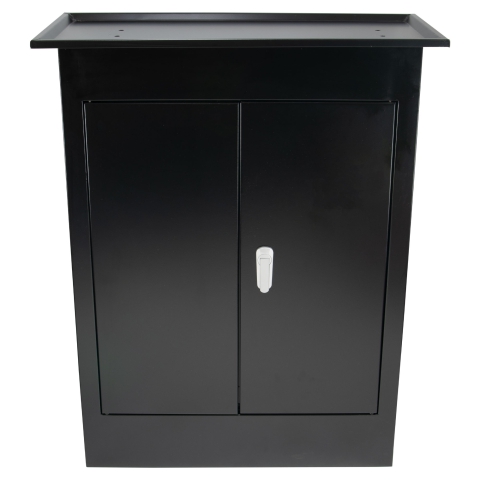

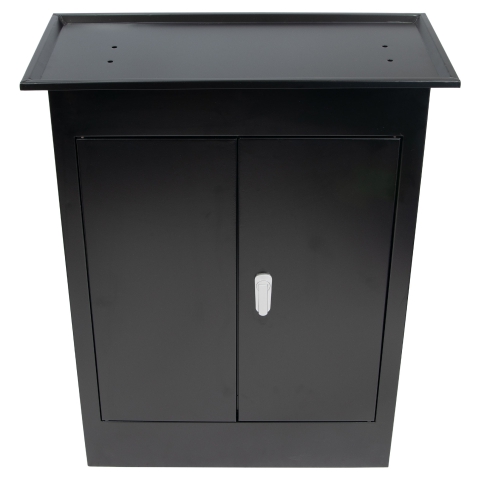

This single column two door design black stand comes with a built in cabinet and is suitable for all SIEG C3 7x14 mini lathes. The cabinet has one shelf.

The tray dimensions are 28.8" x 13.9" x 0.63" (732 mm x 352 mm x 16 mm). Predrilled holes in tray are sized for securing a SIEG C3 7x14 mini lathe.

This chip tray has been upgraded to be more robust than the trays that ship with most mini lathes.

The stand has bolting slots for securing the stand to a floor for additional stability and safety.

See the Compatibility tab for machines that work with this product.

Specifications
Height with Tray 35.3" (896 mm)
Width with Tray 28.8" (732 mm)
Width of Cabinet 25.6" (650 mm)
Depth with Tray 13.9" (352 mm)
Depth of Cabinet 11.8" (300 mm)
Tray Usable Width (Flat Area) 26.8" (680 mm)
Tray Usable Depth (Flat Area) 11.8" (300 mm)
Cabinet Usable Width 25.5" (648 mm)
Cabinet Top Shelf Usable Depth 9.8" (250 mm)
Cabinet Top Shelf Usable Heigth 16.4" (417 mm)
Cabinet Bottom Shelf Usable Depth 9.1" (230 mm)
Cabinet Bottom Shelf Usable Height 15.0" (380 mm)
Bolt Down Slots Distance On Center 6.5" (165 mm)
Bolt Down Slots Width 0.5" (13 mm)
Bolt Down Slots Depth 1.4" (35 mm)

Compatibility

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Grizzly G0765 7x14 Mini Lathe

These stands ship by freight truck because they are simply too heavy and bulky for UPS Parcel Service. If your location will be difficult for larger truck/Semi-trailer, please let us know.

We normally ship truck orders a day or two after we receive the order. For local orders transportation usually takes no more than a day or two. For orders going across county or over water the transportation time can be up to a week or longer.

We add the following shipping cost to your order total:

We ship machines only to the US and Canada.

Destination*Local
Continental
US

Freight Terminal (pick-up)

  • Within 50 miles / 1 hour of travel
  • Note: Not all terminals allow pickup
$99 $179

Commercial Address (inc. Limited Access Sites)

  • Set hours / No delivery appointment
  • Includes limited access (e.g. Schools, Military, Gov. Bldgs)
  • DOES NOT include liftgage service**
$99 $149

**Liftgate: Add liftgate if forklift or loading dock is not available onsite.

  + $75

Residential Address

  • Includes delivery appointment and liftgage
  • for ALL Residential businesses or limited access facilities (e.g. schools) requiring appointment or liftgage
$99 $249



*Local refers to the parts of Southern California served by Hollywood Delivery Service.

**Liftgate service is included in local delivery and residential delivery. A loading dock or forklift is assumed in commercial deliveries. If these are not available, please add this extra service.



Additional Notes

  • Contact and delivery. Ensure you choose the correct type of delivery, have a dedicated contact person/number, and are ready on day of delivery. Freight companies charge an additional fee if delivery exceeds 30 minutes.

  • Only one shipping charge for entire pallet (up to 700 pounds total). The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second machine, stand, tooling, and accessories.

  • A "commercial address" has a sign with company name, a public entrance and posted hours of operation. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.

  • "limited access" designation is required for "Secured Locations" (schools, colleges, universities, university hospitals, military bases, government facilities, etc). Please provide accurate details on delivery in special instructions.

  • "Terminal Pickup" allows for pickup at local terminal. If there is not a terminal within 50 miles (or 1 hour), we will confirm with you that you still want Terminal Pickup. Terminals tend to be near highways (usually miltiple intersecting) and industrial centers. Only certain terminals allow pick-up.

  • "Residential delivery" does not include moving machine into home/garage/workshop or any setup. Delivery is to start of driveway on the street that the delivery truck can access. (See inside delivery below.)



For delivery to Alaska, Hawaii, or Puerto Rico

We will check with several trucking companies to get the best price and then call for your approval before we ship.



Canadian Shipments

Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)

  1. Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).

  2. Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.

  3. Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.



Quotes

To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.



Inside Delivery

Some carriers offer Inside Delivery which gets the machine inside one doorway or into your garage. If you select this we will confirm availability before shipping:

Inside DeliveryLocalContinental US

Gets the machine inside 1 threshold
NO stairs, NO gravel, NO tight corners, etc.

This is simply pushing pallet jack to move crate a little closer to destination or up driveway into garage.
NO Uncrating. NO Setup.

Once shipment in transit carrier can not change service or refund charge. CALL IF QUESTIONS...

$75 $100
