Stand Cabinet, HiTorque Mini Mill

Stand Cabinet, HiTorque Mini Mill
  • Metal stand and chip tray for mini mill
  • Single column design
  • 16.1" x 19.3" x 35.3" (410 mm x 490 mm x 896 mm)
  • Cabinet for storage with locking door
  • Fits the HiTorque and SIEG X2L/SX2L mini mills
Part Number: 5629
Weight: 64.2 lb

Price: $249.95

This product is currently backordered.

Estimated availability:
21-Dec-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.



PayPal Credit

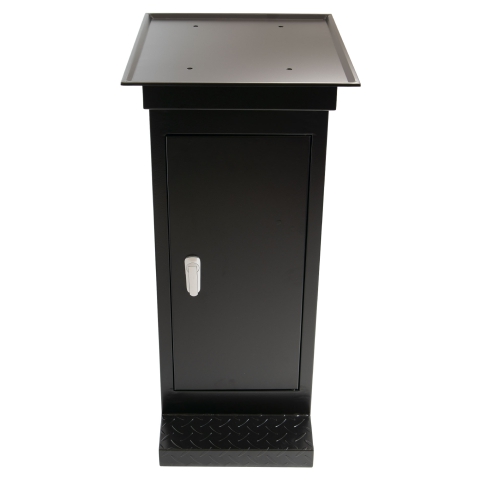

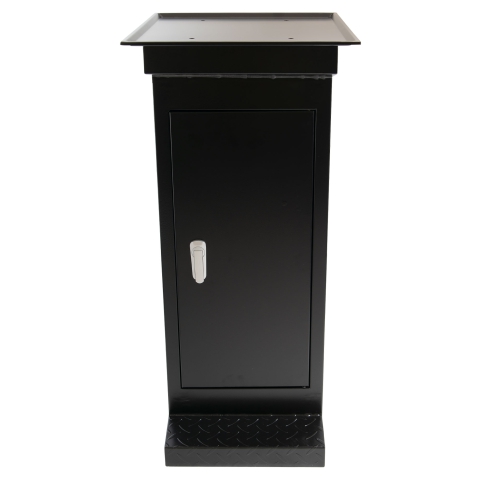

This single column black stand comes with a built in metal storage cabinet and is sized for mini mills. The cabinet has one shelf.

The tray dimensions are 16.1" x 19.3" x 0.95" (882 mm x 352 mm x 24 mm) and the unit stands 35" (889 mm) high. The chip tray has been upgraded to provide years of service. The tray has predrilled holes for securing HiTorque and SIEG X2L/SX2L mini mills.

The cabinet base has bolting slots for securing the stand to a floor for additional stability and safety.

See the Compatibility tab for machines that work with this product.

Specifications
Height with Tray 35.3" (896 mm)
Width with Tray 16.1" (410 mm)
Width of Cabinet 13.4" (340 mm)
Depth with Tray 19.3" (490 mm)
Depth of Cabinet 13.4" (340 mm)
Depth of Cabinet Base 16.5" (420 mm)
Tray Usable Width (Flat Area) 14.1" (358 mm)
Tray Usable Depth (Flat Area) 17.2" (438 mm)
Cabinet Usable Width 13.2" (336 mm)
Cabinet Top Shelf Usable Depth 10.6" (270 mm)
Cabinet Top Shelf Usable Heigth 17.0" (432 mm)
Cabinet Bottom Shelf Usable Depth 11.4" (290 mm)
Cabinet Bottom Shelf Usable Height 14.6" (370 mm)
Bolt Down Slots Distance On Center 6.7" (170 mm)
Bolt Down Slots Width 0.5" (13 mm)
Bolt Down Slots Depth 1.5" (38 mm)

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   SIEG X2D Mini Mill
  •   SIEG X2L Mini Mill
  •   WEN 33013 WEN Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG SX2L Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   LittleMachineShop.com 4190 HiTorque Mini Mill
  •   LittleMachineShop.com 6450 HiTorque Mini Mill
  •   SIEG SX2LF Mini Mill
