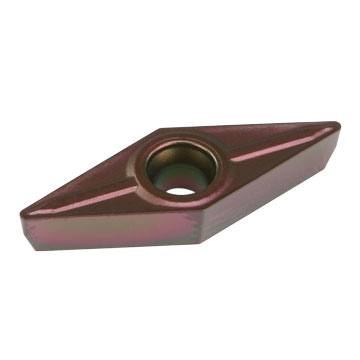

Insert, VCMT-221 Carbide

Coated carbide
35° diamond, 7° relief
40°-60° single countersink, single-sided chip breaker
0.0156" (1/64") corner radius
ANSI: VCMT221, ISO: VCMT110304

Part Number: 5648
Weight: 0.01 lb

Price: $15.95

Share this page:
http://lmscnc.com/5648

VCMT-221 carbide insert is a 35° diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker.

It has an inscribed circle (IC) of 0.25" (1/4"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0156" (1/64").

The insert is designated VCMT221 (ANSI) or VCMT110304 (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.

This high-quality insert is made in America by the Arthur R Warner company.

Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris' Tips

Chris' Tips
Insert VCMT-221
ANSI VCMT221
ISO VCMT110304

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Drawings

Insert VCMT-221
ANSI VCMT221
ISO VCMT110304

Inscribed Circle	∅ IC	1/4"
Corner Radius	R	1/64"
Clearance Angle	C	7°
Thickness	T	1/8"
Length	L	7/16"
Hole / Chip Breaker	∅D	7/64" / single

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:
